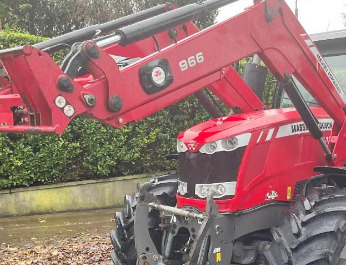

Massey Ferguson 966 Loader
The
MF 966 front end loader is designed for Massey Ferguson 7614, 7615 tractors. The
front end loader has double acting hydraulic bucket and lift cylinders. The
Massey Ferguson 966 front end loader has a lift capacity (at bucket pin) of 5368
lbs (2440 kg) to a max height of 168 in (4270 mm) and breakout force (bucket on
ground) of 6138 lbs (2790 kg). The maximum bucket dump angle is 52 degrees at
maximum height.
The MF 966 loader is compatible with the following buckets: a 95" (2400
mm) heavy-duty material bucket with a heaped capacity of 0.95 m3 (33.2
cu.ft), 102" (2600 mm) high volume bucket with a heaped capacity of 1.85
m3 (67.8 cu.ft), 87" (2200 mm) grading bucket with a heaped capacity of
0.65 m3 (22.7 cu.ft), or 91" (2300 mm) high tip bucket with a heaped
capacity of 2 m3 (70 cu.ft).
| Tractor Models |
Massey Ferguson 7614, 7615 |
| Front Tires |
14.9R30 |
| Rear Tires |
18.4R42 |
| Hydraulic Pressure, psi (bar) |
2900 (200) |
| Loader Model |
MF 966 MSL |
| Leveling Configuration |
Mechanical self leveling |
| Lift cylinder diameter, in (mm) |
3.36/1.98 (85/50) |
| Bucket cylinder diameter, in (mm) |
3.36/1.58 (85/40) |
| Weight, lb (kg) |
1586 (721) |
| Heavy-Duty Material Bucket |
| Width, in (mm) |
95 (2400) |
| Depth, in (mm) |
34 (860) |
| Height, in (mm) |
29.5 (750) |
| Heaped Capacity, cu.ft (m3) |
33.2 (0.95) |
| Weight, lb (kg) |
748 (340) |
| Width, in (mm) |
95 (2400) |
| Depth, in (mm) |
43 (1090) |
| Height, in (mm) |
38.5 (980) |
| Heaped Capacity, cu.ft (m3) |
59.5 (1.71) |
| Weight, lb (kg) |
913 (415) |
| Width, in (mm) |
102 (2600) |
| Depth, in (mm) |
43 (1090) |
| Height, in (mm) |
38.5 (980) |
| Heaped Capacity, cu.ft (m3) |
67.8 (1.85) |
| Weight, lb (kg) |
975 (443) |
| Width, in (mm) |
87 (2200) |
| Depth, in (mm) |
43.3 (1100) |
| Height, in (mm) |
19.7 (500) |
| Heaped Capacity, cu.ft (m3) |
22.7 (0.65) |
| Weight, lb (kg) |
740 (337) |
| Width, in (mm) |
91 (2300) |
| Depth, in (mm) |
47.2 (1200) |
| Height, in (mm) |
47.2 (1200) |
| Heaped Capacity, cu.ft (m3) |
70.0 (2.00) |
| Weight, lb (kg) |
1055 (480) |
| Maximum lift height at pivot pin, in (mm) |
168.0 (4270) |
| Maximum lift height under level bucket, in (mm) |
156.1 (3950) |
| Maximum dump angle at maximum height, degrees |
52 |
| Maximum rollback angle at ground level, degrees |
44 |
| Lift capacity to maximum height at pivot pin, lb (kg) |
5368 (2440) |
| Lift capacity to maximum height at 31.5" (0.8m) from pivot pin, lb (kg) |
4664 (2120) |
| Lift capacity to 1.5m height at 31.5" (0.8m) from pivot pin, lb (kg) |
4950 (2250) |
| Breakout force at pivot pin, lb (kg) |
6138 (2790) |
| Breakout force at 31.5" (0.8m) from pivot pin, lb (kg) |
5126 (2330) |
| Rollback force at ground level, lb (kg) |
7392 (3360) |
