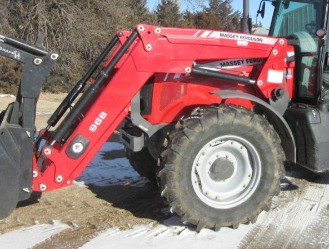

Massey Ferguson 968 Loader
The
MF 968 mechanical self leveling loader fits Massey Ferguson 7614, 7618 tractors.
The loader has double acting bucket and lift hydraulic cylinders. The MF 968
front-end loader has a max lift height of 168" (4250 mm) at pivot pin and max
bucket dump angle of 52 degrees. The lift capacity is 6116 lbs (2780 kg) to max
height at pin, and boom breakout force is 6975 lbs (3170 kg).
The Massey Ferguson 968 loader is equipped with the following buckets: a
95" (2400 mm) heavy-duty material bucket with a heaped capacity of 0.95
m3 (33.2 cu.ft), 95" (2400 mm) high volume bucket with a heaped capacity
of 1.71 m3 (59.5 cu.ft), 87" (2200 mm) grading bucket with a heaped
capacity of 0.65 m3 (22.7 cu.ft), and 91" (2300 mm) high tip bucket with
a heaped capacity of 2 m3 (70 cu.ft).
| Tractor Models |
Massey Ferguson 7614, 7618 |
| Front Tires |
14.9R30 |
| Rear Tires |
18.4R42 |
| Hydraulic Pressure, psi (bar) |
2900 (200) |
| Loader Model |
MF 968 MSL |
| Leveling Configuration |
Mechanical self leveling |
| Lift cylinder diameter, in (mm) |
3.55/1.98 (90/50) |
| Bucket cylinder diameter, in (mm) |
3.75/1.58 (95/40) |
| Weight, lb (kg) |
1610 (731) |
| Heavy-Duty Material Bucket |
| Width, in (mm) |
95 (2400) |
| Depth, in (mm) |
34 (860) |
| Height, in (mm) |
29.5 (750) |
| Heaped Capacity, cu.ft (m3) |
33.2 (0.95) |
| Weight, lb (kg) |
748 (340) |
| Width, in (mm) |
95 (2400) |
| Depth, in (mm) |
43 (1090) |
| Height, in (mm) |
38.5 (980) |
| Heaped Capacity, cu.ft (m3) |
59.5 (1.71) |
| Weight, lb (kg) |
913 (415) |
| Width, in (mm) |
102 (2600) |
| Depth, in (mm) |
43 (1090) |
| Height, in (mm) |
38.5 (980) |
| Heaped Capacity, cu.ft (m3) |
67.8 (1.85) |
| Weight, lb (kg) |
975 (443) |
| Width, in (mm) |
87 (2200) |
| Depth, in (mm) |
43.3 (1100) |
| Height, in (mm) |
19.7 (500) |
| Heaped Capacity, cu.ft (m3) |
22.7 (0.65) |
| Weight, lb (kg) |
740 (337) |
| Width, in (mm) |
91 (2300) |
| Depth, in (mm) |
47.2 (1200) |
| Height, in (mm) |
47.2 (1200) |
| Heaped Capacity, cu.ft (m3) |
70.0 (2.00) |
| Weight, lb (kg) |
1055 (480) |
| Maximum lift height at pivot pin, in (mm) |
168.0 (4250) |
| Maximum lift height under level bucket, in (mm) |
156.1 (3950) |
| Maximum dump angle at maximum height, degrees |
52 |
| Maximum rollback angle at ground level, degrees |
45 |
| Lift capacity to maximum height at pivot pin, lb (kg) |
6116 (2780) |
| Lift capacity to maximum height at 31.5" (0.8m) from pivot pin, lb (kg) |
5390 (2450) |
| Lift capacity to 1.5m height at 31.5" (0.8m) from pivot pin, lb (kg) |
5698 (2590) |
| Breakout force at pivot pin, lb (kg) |
6975 (3170) |
| Breakout force at 31.5" (0.8m) from pivot pin, lb (kg) |
5896 (2680) |
| Rollback force at ground level, lb (kg) |
9835 (4470) |
