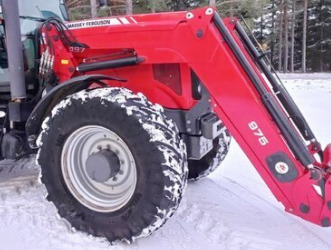

Massey Ferguson 975 Loader

The Massey Ferguson 975 loader is used for MF 6485, 6497, 6499, 7485, 7495 tractors. The loader hydraulic system includes double-acting bucket and lift hydraulic cylinders. The MF 975 front end loader has a lifting capacity (at pivot pin) of 4916 lbs (2230 kg) to maximum height of 176" (4460 mm), and bucket's breakout force of 5952 lbs (2700 kg). The bucket dump clearance is 135" (3420 mm) at maximum dump angle of 56 degrees.

The rated cycle times are 7.1 seconds lifting to maximum height, and 1.8 seconds to full bucket dump. The MF 975 loader is compatible with a 95" (2400 mm) standard material bucket with a heaped capacity of 0.95 m3 (33.2 cu.ft), 102" (2600 mm) heavy-duty material bucket with a heaped capacity of 1.03 m3 (36.1 cu.ft), or 102" (2600 mm) high volume bucket with a heaped capacity of 1.85 m3 (67.8 cu.ft).

Compatible Tractors
Tractor Models Massey Ferguson 6485, 6497, 6499, 7485, 7495
Front Tires 14.9R28
Rear Tires 18.4R38
Pump Capacity, gpm (lpm) 15.6 (59.0)
Hydraulic Pressure, psi (bar) 2900 (200)

Loader
Loader Model MF 975 MSL
Leveling Configuration Mechanical self leveling
Loader Weight, lbs (kg) 1672 (760)

Standard Material Bucket
Width, in (mm) 95 (2400)
Depth, in (mm) 32 (810)
Height, in (mm) 29.5 (750)
Heaped Capacity, cu.ft (m3) 33.2 (0.95)
Weight, lb (kg) 647 (294)

Heavy-Duty Material Bucket
Width, in (mm) 102 (2600)
Depth, in (mm) 34 (860)
Height, in (mm) 29.5 (750)
Heaped Capacity, cu.ft (m3) 36.1 (1.03)
Weight, lb (kg) 803 (365)

High Volume Bucket
Width, in (mm) 102 (2600)
Depth, in (mm) 43 (1090)
Height, in (mm) 38.5 (980)
Heaped Capacity, cu.ft (m3) 67.8 (1.85)
Weight, lb (kg) 975 (443)

Loader Dimensions
Maximum Lift Height to Pivot Pin, in (mm) 176 (4460)
Maximum Lift Height under Level Bucket, in (mm) 164 (4160)
Clearance with Bucket Dumped, in (mm) 135 (3420)
Reach at Maximum Lift Height, in (mm) 27 (680)
Maximum Dump Angle, degrees 56
Reach with Bucket on Ground, in (mm) 91 (2300)
Maximum Rollback Angle, degrees 39
Digging Depth, in (mm) 4 (110)

Operating Data
Lift Capacity to Max Height at Pivot Pins, lbs (kg) 4916 (2230)
Lift Capacity to Max Height at 31.5" (800 mm) forward of Pivot Pins, lbs (kg) 4387 (1990)
Max Breakout Force at Pivot Pins, lbs (kg) 5952 (2700)
Max Breakout Force at 31.5" (800 mm) forward of Pivot Pins, lbs (kg) 5225 (2370)

Cycle Times
Loader Raise, sec 7,1
Loader Lower, sec 4,5
Bucket Dump, sec 1,8
