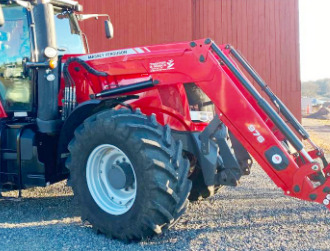

Massey Ferguson 976 Loader
The
MF 976 MSL loader is used for Massey Ferguson 7714, 7715, 7716 tractors. The
loader hydraulic system includes double-acting bucket and lift hydraulic
cylinders. The Massey Ferguson 976 front end loader has a lifting capacity (at
pivot pin) of 5478 lbs (2490 kg) to maximum height of 177.9" (4500 mm), and
bucket's breakout force of 6578 lbs (2990 kg).
The maximum bucket dump angle is 52 degrees at full height. The MF 976
loader is compatible with a 95" (2400 mm) standard material bucket with
a heaped capacity of 0.95 m3 (33.2 cu.ft), 102" (2600 mm) heavy-duty
material bucket with a heaped capacity of 1.03 m3 (36.1 cu.ft), 102"
(2600 mm) high volume bucket with a heaped capacity of 1.85 m3 (67.8
cu.ft), or 91" (2300 mm) high tip bucket with a heaped capacity of 2 m3
(70 cu.ft).
| Tractor Models |
Massey Ferguson 7714, 7715, 7716 |
| Front Tires |
380/85R28 |
| Rear Tires |
460/85R38 |
| Hydraulic Pressure, psi (bar) |
2900 (200) |
| Loader Model |
MF 976 MSL |
| Leveling Configuration |
Mechanical self leveling |
| Lift cylinder diameter, in (mm) |
3.56/1.98 (90/50) |
| Bucket cylinder diameter, in (mm) |
3.56/1.58 (90/40) |
| Weight, lb (kg) |
1672 (760) |
| Width, in (mm) |
95 (2400) |
| Depth, in (mm) |
32 (810) |
| Height, in (mm) |
29.5 (750) |
| Heaped Capacity, cu.ft (m3) |
33.2 (0.95) |
| Weight, lb (kg) |
647 (294) |
| Heavy-Duty Material Bucket |
| Width, in (mm) |
102 (2600) |
| Depth, in (mm) |
34 (860) |
| Height, in (mm) |
29.5 (750) |
| Heaped Capacity, cu.ft (m3) |
36.1 (1.03) |
| Weight, lb (kg) |
803 (365) |
| Width, in (mm) |
102 (2600) |
| Depth, in (mm) |
43 (1090) |
| Height, in (mm) |
38.5 (980) |
| Heaped Capacity, cu.ft (m3) |
67.8 (1.85) |
| Weight, lb (kg) |
975 (443) |
| Width, in (mm) |
91 (2300) |
| Depth, in (mm) |
47.2 (1200) |
| Height, in (mm) |
47.2 (1200) |
| Heaped Capacity, cu.ft (m3) |
70.0 (2.00) |
| Weight, lb (kg) |
1055 (480) |
| Maximum lift height at pivot pin, in (mm) |
177.9 (4500) |
| Maximum lift height under level bucket, in (mm) |
166.0 (4200) |
| Maximum dump angle at maximum height, degrees |
52 |
| Maximum rollback angle at ground level, degrees |
44 |
| Lift capacity to maximum height at pivot pin, lb (kg) |
5478 (2490) |
| Lift capacity to maximum height at 31.5" (0.8m) from pivot pin, lb (kg) |
4664 (2120) |
| Lift capacity to 1.5m height at 31.5" (0.8m) from pivot pin, lb (kg) |
5214 (2370) |
| Breakout force at pivot pin, lb (kg) |
6578 (2990) |
| Breakout force at 31.5" (0.8m) from pivot pin, lb (kg) |
5588 (2540) |
| Rollback force at ground level, lb (kg) |
8514 (3870) |
