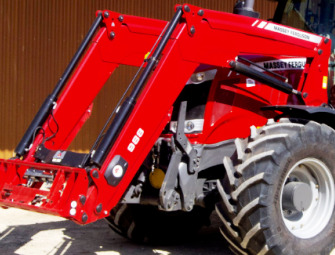

Massey Ferguson 988 Loader
The
MF 988 front end loader is designed for Massey Ferguson 7720, 7722, 7724
tractors. The front end loader has double acting hydraulic bucket and lift
cylinders. The Massey Ferguson 988 front end loader has a lift capacity (at
bucket pin) of 6754 lbs (3070 kg) to a max height of 195.7" (4950 mm) and
breakout force (bucket on ground) of 8646 lbs (3930 kg). The maximum bucket dump
angle is 49 degrees at maximum height.
The MF 988 loader is compatible with the following buckets: a 95" (2400
mm) standard material bucket with a heaped capacity of 0.95 m3 (33.2
cu.ft), 102" (2600 mm) heavy-duty material bucket with a heaped capacity
of 1.03 m3 (36.1 cu.ft), 102" (2600 mm) high volume bucket with a rated
capacity of 1.85 m3 (67.8 cu.ft), or 91" (2300 mm) high tip bucket with
a rated capacity of 2.00 m3 (70 cu.ft).
| Tractor Models |
Massey Ferguson 7720, 7722, 7724 |
| Front Tires |
420/85R28 |
| Rear Tires |
480/80R42 |
| Hydraulic Pressure, psi (bar) |
2900 (200) |
| Loader Model |
MF 988 MSL |
| Leveling Configuration |
Mechanical self leveling |
| Lift cylinder diameter, in (mm) |
3.75/1.98 (95/50) |
| Bucket cylinder diameter, in (mm) |
3.95/1.98 (100/50) |
| Weight, lb (kg) |
1844 (838) |
| Width, in (mm) |
95 (2400) |
| Depth, in (mm) |
32 (810) |
| Height, in (mm) |
29.5 (750) |
| Heaped Capacity, cu.ft (m3) |
33.2 (0.95) |
| Weight, lb (kg) |
647 (294) |
| Heavy-Duty Material Bucket |
| Width, in (mm) |
102 (2600) |
| Depth, in (mm) |
34 (860) |
| Height, in (mm) |
29.5 (750) |
| Heaped Capacity, cu.ft (m3) |
36.1 (1.03) |
| Weight, lb (kg) |
803 (365) |
| Width, in (mm) |
102 (2600) |
| Depth, in (mm) |
43 (1090) |
| Height, in (mm) |
38.5 (980) |
| Heaped Capacity, cu.ft (m3) |
67.8 (1.85) |
| Weight, lb (kg) |
975 (443) |
| Width, in (mm) |
91 (2300) |
| Depth, in (mm) |
47.2 (1200) |
| Height, in (mm) |
47.2 (1200) |
| Heaped Capacity, cu.ft (m3) |
70.0 (2.00) |
| Weight, lb (kg) |
1055 (480) |
| Maximum lift height at pivot pin, in (mm) |
195.7 (4950) |
| Maximum lift height under level bucket, in (mm) |
183.8 (4650) |
| Maximum dump angle at maximum height, degrees |
49 |
| Maximum rollback angle at ground level, degrees |
44 |
| Lift capacity to maximum height at pivot pin, lb (kg) |
6754 (3070) |
| Lift capacity to maximum height at 31.5" (0.8m) from pivot pin, lb (kg) |
6094 (2770) |
| Lift capacity to 1.5m height at 31.5" (0.8m) from pivot pin, lb (kg) |
6710 (3050) |
| Breakout force at pivot pin, lb (kg) |
8646 (3930) |
| Breakout force at 31.5" (0.8m) from pivot pin, lb (kg) |
7348 (3340) |
| Rollback force at ground level, lb (kg) |
9812 (4460) |
