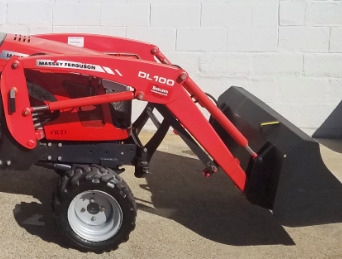

Massey Ferguson DL100 Loader

The Massey Ferguson DL100 non-self leveling loader fits MF GC1715, GC1720, GC2410 tractors. The loader has double acting bucket and lift hydraulic cylinders. The MF DL100 front-end loader has a max lift height of 73 in (1854 mm) at pivot pin and max bucket dump angle of 43 degrees.

The lift capacity is 678 lbs (307 kg) to max height at pin, and boom breakout force is 950 lbs (431 kg). The Massey Ferguson DL100 loader is equipped with a 48" (1220 mm) standard material bucket with a heaped capacity of 0.20 m3 (7.02 cu.ft).

Compatible Tractors
Tractor Models MF GC1715, GC1720, GC2410
Front Tires 18x8.5-10
Rear Tires 26x12.00-12
Hydraulic System Flow, gpm (lpm) 4.8 (15.5)
Hydraulic Pressure, psi 1914

Loader
Loader Model MF DL100 NSL
Leveling Configuration Non-self leveling
Tool Attachment Pin Type

Standard Material Bucket
Width, in (mm) 48 (1220)
Struck Capacity, cu. ft (m3) 5,67 (0,16)
Heaped Capacity, cu. ft (m3) 7,02 (0,20)

Loader Dimensions
Maximum Lift Height to Pivot Pin, in (mm) 73 (1854)
Maximum Dump Angle, degrees 43
Maximum Rollback Angle, degrees 23

Operating Data
Lift Capacity to Maximum Height at Pivot Pin, lbs (kg) 678 (307)
Lift Capacity to Maximum Height at 500 mm Forward of Pivot Pin, lbs (kg) 470 (213)
Breakout Force at Pivot Pin, lbs (kg) 950 (431)
