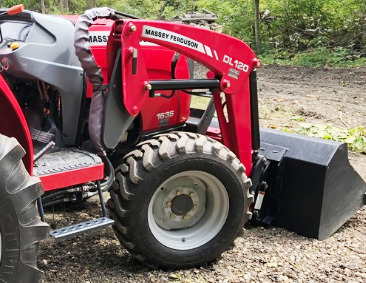

Massey Ferguson DL120 Loader

The Massey Ferguson DL120 NSL loader is compatible with MF 1533, 1540, MF 1635, and 1643 tractors. The loader hydraulic system includes double-acting hydraulic lifting and bucket cylinders.

The loader has a maximum lift height of 102" (2591 mm) at pin and bucket dump angle of 47 degrees. The lifting capacity is 1900 lbs (862 kg) at max height (bucket pin), and boom breakout force is 2660 lbs (1210 kg).

The Massey Ferguson DL120 front end loader is compatible with the following buckets: a 60" (1530 mm) standard material bucket with heaped capacity of 10.6 cu.ft (0.30 cu.m), 66" (1680 mm) standard material bucket with heaped capacity of 18.2 cu.ft (0.50 cu.m), or 72" (1830 mm) standard material bucket with heaped capacity of 21 cu.ft (0.58 cu.m).

Compatible Tractors
Tractor Models MF 1533, 1540, MF 1635, and 1643
Front Tires 8.00-16
Rear Tires 12.4-24
Hydraulic System Flow, gpm (lpm) 11.6 (43.9)
Hydraulic Pressure, bar (psi) 157 (2277)

Loader
Loader Model MF DL120 NSL
Leveling Configuration Non-self leveling
Tool Attachment Pin Type

60" Standard Material Bucket
Width, in (mm) 60 (1530)
Struck Capacity, cu. ft (m3) 8.5 (0.24)
Heaped Capacity, cu. ft (m3) 10.6 (0.30)

66" Standard Material Bucket
Width, in (mm) 66 (1680)
Struck Capacity, cu. ft (m3) 14.1 (0.40)
Heaped Capacity, cu. ft (m3) 18.2 (0.50)


72" Standard Material Bucket
Width, in (mm) 72 (1830)
Struck Capacity, cu. ft (m3) 16.8 (0.47)
Heaped Capacity, cu. ft (m3) 21.0 (0.58)

Loader Dimensions
Maximum Lift Height to Pivot Pin, in (mm) 102 (2591)
Maximum Dump Angle, degrees 47
Maximum Rollback Angle, degrees 30

Operating Data
Lift Capacity to Maximum Height at Pivot Pin, lbs (kg) 1900 (862)
Lift Capacity to Maximum Height at 500 mm Forward of Pivot Pin, lbs (kg) 1314 (596)
Breakout Force at Pivot Pin, lbs (kg) 2660 (1210)
Breakout Force at 500 mm Forward of Pivot Pin, lbs (kg) 1841 (835)
