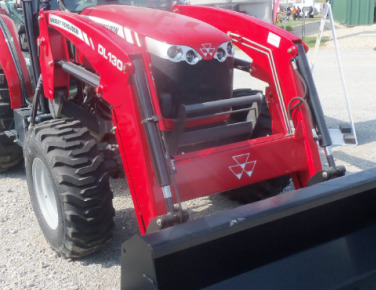

Massey Ferguson DL130 Loader

The Massey Ferguson DL130 non-self leveling loader is available for MF 1648, 1652, MF 1655, 1660 tractors. The front end loader hydraulic system includes double-acting hydraulic bucket and lift cylinders.

The loader has a lifting capacity (at pin) of 2527 lbs (1146 kg) to full height of 113.5" (2883 mm) and breakout force of 3230 lbs (1470 kg). The clearance with a bucket dumped is 84" (2140 mm) at maximum dump angle of 48 degrees.

The Massey Ferguson DL130 front end loader can be equipped with the following buckets: a 66" (1680 mm) heavy-duty material bucket with heaped capacity of 11.9 cu.ft (0.34 cu.m), 72" (1830 mm) standard material bucket with heaped capacity of 25 cu.ft (0.72 cu.m), and 72" (1830 mm) heavy-duty material bucket with heaped capacity of 13.3 cu.ft (0.38 cu.m).

Compatible Tractors
Tractor Models MF 1648, 1652, MF 1655, 1660
Front Tires 9.50x16
Rear Tires 13.6x28
Hydraulic System Flow, gpm (lpm) 17.7 (67.2)

Loader
Loader Model MF DL130 NSL
Leveling Configuration Non-self leveling
Tool Attachment Pin Type

72" Standard Material Bucket
Width, in (mm) 72 (1830)
Struck Capacity, cu. ft (m3) 20 (0.57)
Heaped Capacity, cu. ft (m3) 25 (0.72)


66" Heavy-Duty Material Bucket
Width, in (mm) 66 (1720)
Struck Capacity, cu. ft (m3) 10.5 (0.30)
Heaped Capacity, cu. ft (m3) 11.9 (0.34)

72" Heavy Duty Material Bucket
Width, in (mm) 72 (1820)
Struck Capacity, cu. ft (m3) 11.6 (0.33)
Heaped Capacity, cu. ft (m3) 13.3 (0.38)

Loader Dimensions
Maximum Lift Height to Pivot Pin, in (mm) 113.5 (2883)
Maximum Dump Angle, degrees 48
Maximum Rollback Angle, degrees 28

Operating Data
Lift Capacity to Maximum Height at Pivot Pin, lbs (kg) 2527 (1146)
Lift Capacity to Maximum Height at 500 mm Forward of Pivot Pin, lbs (kg) 1803 (818)
Breakout Force at Pivot Pin, lbs (kg) 3230 (1470)
Breakout Force at 500 mm Forward of Pivot Pin, lbs (kg) 2307 (1046)
