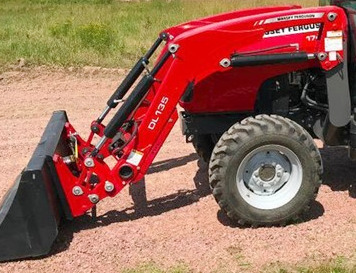

Massey Ferguson DL135 Loader

The Massey Ferguson DL135 NSL front end loader is designed to fit MF 1749, 1754, MF 1758, 1759 tractors. The loader has double acting hydraulic bucket and lifting cylinders.

The loader has a lift capacity (at pivot pin) of 2520 lbs (1145 kg) to full height of 110.2" (2800 mm), and breakout force (bucket on ground) of 4090 lbs (1860 mm). The bucket dump clearance is 81" (2058 mm) at max dump angle of 48 degrees.

The Massey Ferguson DL135 loader can be equipped with a 72" (1830 mm) standard material bucket with heaped capacity of 21 cu.ft (0.58 cu.m), and 72" (1830 mm) heavy-duty material bucket with heaped capacity of 13.3 cu.ft (0.38 cu.m).

Compatible Tractors
Tractor Models MF 1749, 1754, MF 1758, 1759
Front Tires 27x10.50-15
Rear Tires 44x18.00-20
Hydraulic System Flow, gpm (lpm) 11.6 (43.9)
Hydraulic Pressure, psi 2277

Loader
Loader Model MF DL135 NSL
Leveling Configuration Non-self leveling
Lift Cylinder Two, double acting
Lift Cylinder Diameter, in (mm) 2.75 (70)
Bucket Cylinder Two, double acting
Bucket Cylinder Diameter, in (mm) 2.75 (70)
Tool Attachment Pin type or skid steer quick

Standard Material Bucket
Width, in (mm) 72 (1830)
Struck Capacity, cu. ft (m3) 16,8 (0,47)
Heaped Capacity, cu. ft (m3) 21,0 (0,58)


Loader Dimensions
Maximum Lift Height to Pivot Pin, in (mm) 110.2 (2800)
Digging Depth, in (mm) 5.4 (140)
Maximum Dump Angle, degrees 48
Maximum Rollback Angle, degrees 45

Operating Data
Lift Capacity to Maximum Height at Pivot Pin, lbs (kg) 2520 (1145)
Lift Capacity to Maximum Height at 500 mm Forward of Pivot Pin, lbs (kg) 1760 (800)
Breakout Force at Pivot Pin, lbs (kg) 4090 (1860)
Breakout Force at 500 mm Forward of Pivot Pin, lbs (kg) 2860 (1300)
Maximum Rollback Force, lbs (kg) 4140 (1880)
