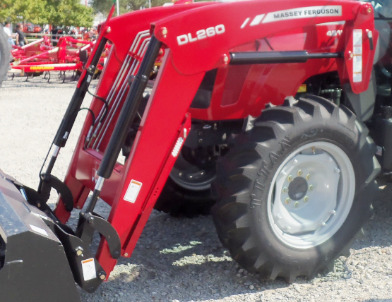

Massey Ferguson DL260 Loader

The Massey Ferguson DL260 non-self leveling front end loader is fitted to MF 4609, 4610 tractors. The front end loader hydraulic system includes double-acting hydraulic bucket and boom cylinders.

The loader’s max lift height is 128 in (3251 mm) at pin and maximum dump angle is 50 degrees. The lifting capacity is 3625 lbs (1644 kg) to maximum lift height at pin, and breakout force is 4220 lbs (1915 kg).

The Massey Ferguson DL260 loader is equipped with the following buckets: a 72" (1830 mm) standard material bucket with heaped capacity of 25 cu.ft (0.72 cu.m), and 84" (2130 mm) standard material bucket with heaped capacity of 30.5 cu.ft (0.87 cu.m).

Compatible Tractors
Tractor Models MF 4609, 4610
Front Tires 12.5/80-18
Rear Tires 19.5L-24
Hydraulic System Flow, gpm (lpm) 17.1 (64.7)
Hydraulic Pressure, psi 2800

Loader
Loader Model MF DL260 NSL
Leveling Configuration Non-self leveling
Bucket-Level Indicator Standard
Tool Attachment Pin Type
Boom Cylinder Diameter, in (mm) 2.8 (70)
Bucket Cylinder Diameter, in (mm) 2.8/1.6 (70/40)

6-ft Standard Material Bucket
Width, in (mm) 72 (1830)
Struck Capacity, cu. ft (m3) 20 (0.57)
Heaped Capacity, cu. ft (m3) 25 (0.72)


7-ft Standard Material Bucket
Width, in (mm) 84 (2130)
Struck Capacity, cu. ft (m3) 25.3 (0.74)
Heaped Capacity, cu. ft (m3) 30.5 (0.87)

Loader Dimensions
Maximum Lift Height to Pivot Pin, in (mm) 128 (3251)
Digging Depth, in (mm) 5.9 (150)
Maximum Dump Angle, degrees 50
Maximum Rollback Angle, degrees 44

Operating Data
Lift Capacity to Maximum Height at Pivot Pin, lbs (kg) 3625 (1644)
Lift Capacity to Maximum Height at 500 mm Forward of Pivot Pin, lbs (kg) 2536 (1150)
Breakout Force at Pivot Pin, lbs (kg) 5062 (2300)
Breakout Force at 500 mm Forward of Pivot Pin, lbs (kg) 3540 (1606)
Maximum Rollback Force, lbs (kg) 4220 (1915)
