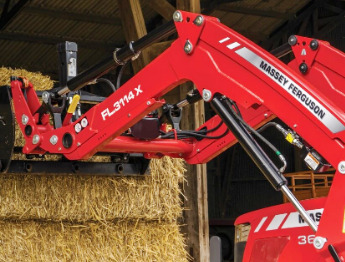

Massey Ferguson FL.3114 X Loader

The Massey Ferguson FL.3114 X loader is used for Massey Ferguson 3707, 3708, 3709, 3710 tractors. The loader hydraulic system includes double-acting bucket and lift hydraulic cylinders. The MF FL.3114X front end loader has a lifting capacity (at pivot pin) of 2398 lbs (1090 kg) to maximum height of 122.5" (3100 mm), and bucket's breakout force of 3960 lbs (1800 kg).

The maximum bucket dump angle is 50 degrees at full height. The MF FL.3114 X loader is compatible with a 73" (1850 mm) and 83" (2100 mm) standard material buckets with heaped capacities of 0.72 m3 (25.4 cu.ft) and 0.82 m3 (29 cu.ft), or 85" (2150 mm) grading bucket with a heaped capacity of 0.73 m3 (25.8 cu.ft).

Compatible Tractors
Tractor models Massey Ferguson 3707, 3708, 3709, 3710
Hydraulic system flow, gpm (lpm) 17.0 (65.0)
Hydraulic pressure, bar (psi) 190 (2750)

Loader
Loader model MF FL.3114 X
Leveling system Mechanical self leveling
Lift cylinder diameter, in (mm) 2.37 (60)
Bucket cylinder diameter, in (mm) 2.77 (70)
Weight (w/o bucket), lb (kg) 792 (360)

73" Standard Material Bucket
Width, in (mm) 73 (1850)
Depth, in (mm) 31.9 (810)
Height, in (mm) 29.5 (750)
Capacity (heaped), cu.ft (m3) 25.4 (0.72)
Weight, lb (kg) 450 (205)

83" Standard Material Bucket
Width, in (mm) 83 (2100)
Depth, in (mm) 31.9 (810)
Height, in (mm) 29.5 (750)
Capacity (heaped), cu.ft (m3) 29 (0.82)
Weight, lb (kg) 555 (252)

Heavy Duty Material Bucket
Width, in (mm) 83 (2100)
Depth, in (mm) 31.9 (810)
Height, in (mm) 29.5 (750)
Capacity (heaped), cu.ft (m3) 29 (0.82)
Weight, lb (kg) 692 (314)

Grading Bucket
Width, in (mm) 85 (2150)
Depth, in (mm) 43 (1100)
Height, in (mm) 19 (500)
Capacity (heaped), cu.ft (m3) 25.8 (0.73)
Weight, lb (kg) 742 (337)

Silograb
Width, in (mm) 83 (2100)
Depth, in (mm) 33.5 (850)
Number of tines in the grabber 11+11
Capacity, cu.ft (m3) 39 (1.11)
Weight, lb (kg) 805 (365)

Loader Dimensions
Maximum lift height at pivot pin, in (mm) 122.5 (3100)
Maximum lift height under level bucket, in (mm) 114.6 (2900)
Maximum dump angle at maximum height, deg 50
Maximum rollback angle at ground level, deg 42

Operating Data
Lift capacity to maximum height at pivot pin, lb (kg) 2398 (1090)
Lift capacity to maximum height at 31.5" (800 mm) from pivot pin, lb (kg) 2684 (1220)
Lift capacity to 59" (1.5m) height at pivot pin, lb (kg) 2970 (1350)
Lift capacity to 59" (1.5m) height at 31.5" (800 mm) from pivot pin, lb (kg) 3080 (1400)
Breakout force at pivot pin, lb (kg) 3960 (1800)
Breakout force at 31.5" (800 mm) from pivot pin, lb (kg) 3476 (1580)
Rollback force at ground level, lb (kg) 4202 (1910)
