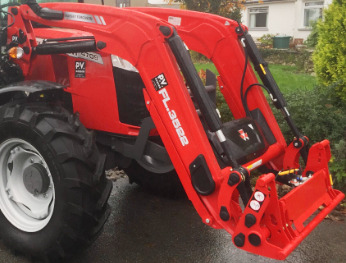

Massey Ferguson FL.3522 Loader

The MF FL.3522 front end loader is designed for Massey Ferguson 4707, 4708, 4709 tractors. The front end loader has double acting hydraulic bucket and lift cylinders. The MF FL.3522 front end loader has a lift capacity (at bucket pin) of 4400 lbs (2000 kg) to a max height of 140.3" (3550 mm) and breakout force (bucket on ground) of 5654 lbs (2570 kg).

The maximum bucket dump angle is 58 degrees at maximum height. The Massey Ferguson FL.3522 loader is compatible with the following buckets: a 87" (2200 mm) light material bucket with a rated capacity of 1.28 m3 (45.2 cu.ft), and 83" (2100 mm) heavy-duty material bucket with a rated capacity of 0.82 m3 (28.7 cu.ft).

Compatible Tractors
Tractor models Massey Ferguson 4707, 4708, 4709
Hydraulic system flow, gpm (lpm) 17.0 (65.0)
Hydraulic pressure, bar (psi) 200 (2900)

Loader
Loader model MF FL.3522
Leveling system Non self leveling
Lift cylinder diameter, in (mm) 3.16 (80)
Bucket cylinder diameter, in (mm) 2.96 (75)
Weight (w/o bucket), lb (kg) 990 (450)

Light Material Bucket
Width, in (mm) 87 (2200)
Depth, in (mm) 41 (1040)
Height, in (mm) 33.5 (850)
Capacity (heaped), cu.ft (m3) 45.2 (1.28)
Weight, lb (kg) 647 (294)

Heavy Duty Material Bucket
Width, in (mm) 83 (2100)
Depth, in (mm) 31.9 (810)
Number of tines in the grabber 29.5 (750)
Capacity, cu.ft (m3) 29 (0.82)
Weight, lb (kg) 692 (314)

Silograb
Width, in (mm) 67 (1700)
Depth, in (mm) 33.5 (850)
Number of tines in the grabber 9+9
Capacity, cu.ft (m3) 32 (0.90)
Weight, lb (kg) 670 (304)

Loader Dimensions
Maximum lift height at pivot pin, in (mm) 140.3 (3550)
Maximum lift height under level bucket, in (mm) 128.4 (3250)
Maximum dump angle at maximum height, deg 58
Maximum rollback angle at ground level, deg 48

Operating Data
Lift capacity to maximum height at pivot pin, lb (kg) 4400 (2000)
Lift capacity to maximum height at 31.5" (800 mm) from pivot pin, lb (kg) 2750 (1250)
Lift capacity to 59" (1.5m) height at pivot pin, lb (kg) 4884 (2220)
Lift capacity to 59" (1.5m) height at 31.5" (800 mm) from pivot pin, lb (kg) 3630 (1650)
Breakout force at pivot pin, lb (kg) 5654 (2570)
Breakout force at 31.5" (800 mm) from pivot pin, lb (kg) 3938 (1790)
Rollback force at ground level, lb (kg) 5346 (2430)
