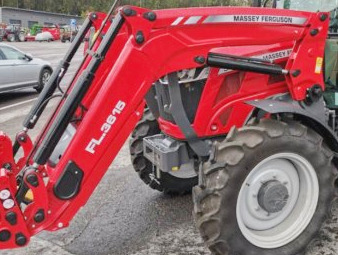

Massey Ferguson FL.3615 Loader

The Massey Ferguson FL.3615 loader fits MF 4707, 4708, 4709, 4710 tractors. The loader has double acting bucket and lift hydraulic cylinders. The MF FL.3615 front-end loader has a max lift height of 140.3" (3550 mm) at pivot pin and max bucket dump angle of 58 degrees. The lift capacity is 3014 lbs (1370 kg) to max height at pin, and boom breakout force is 3982 lbs (1810 kg).

The Massey Ferguson FL.3615 loader is equipped with the following buckets: a 83" (2100 mm) standard material bucket with a rated capacity of 0.82 m3 (28.7 cu.ft), 95" (2400 mm) standard material bucket with a heaped capacity of 0.95 m3 (33.2 cu.ft), or 87" (2200 mm) light material bucket with a rated capacity of 1.28 m3 (45.2 cu.ft).

Compatible Tractors
Tractor models Massey Ferguson 4707, 4708, 4709, 4710
Hydraulic system flow, gpm (lpm) 17.0 (65.0)
Hydraulic pressure, bar (psi) 200 (2900)

Loader
Loader model MF FL.3615
Leveling system Mechanical self leveling
Lift cylinder diameter, in (mm) 2.77 (70)
Bucket cylinder diameter, in (mm) 2.96 (75)
Weight (w/o bucket), lb (kg) 1144 (520)

83" Standard Material Bucket
Width, in (mm) 83 (2100)
Depth, in (mm) 31.9 (810)
Height, in (mm) 29.5 (750)
Capacity (heaped), cu.ft (m3) 29 (0.82)
Weight, lb (kg) 555 (252)

95" Standard Material Bucket
Width, in (mm) 95 (2400)
Depth, in (mm) 31.9 (810)
Height, in (mm) 29.5 (750)
Capacity (heaped), cu.ft (m3) 33.5 (0.95)
Weight, lb (kg) 650 (294)

Light Material Bucket
Width, in (mm) 87 (2200)
Depth, in (mm) 41 (1040)
Height, in (mm) 33.5 (850)
Capacity (heaped), cu.ft (m3) 45.2 (1.28)
Weight, lb (kg) 647 (294)

Silograb
Width, in (mm) 67 (1700)
Depth, in (mm) 33.5 (850)
Number of tines in the grabber 9+9
Capacity, cu.ft (m3) 32 (0.90)
Weight, lb (kg) 670 (304)

Loader Dimensions
Maximum lift height at pivot pin, in (mm) 140.3 (3550)
Maximum lift height under level bucket, in (mm) 128.5 (3250)
Maximum dump angle at maximum height, deg 58
Maximum rollback angle at ground level, deg 48
Maximum rescooped rollback angle, 27.7" (700 mm) from ground level, deg 58

Operating Data
Lift capacity to maximum height at pivot pin, lb (kg) 3014 (1370)
Lift capacity to maximum height at 31.5" (800 mm) from pivot pin, lb (kg) 3410 (1550)
Lift capacity to 59" (1.5m) height at pivot pin, lb (kg) 3388 (1540)
Lift capacity to 59" (1.5m) height at 31.5" (800 mm) from pivot pin, lb (kg) 3454 (1570)
Breakout force at pivot pin, lb (kg) 3982 (1810)
Breakout force at 31.5" (800 mm) from pivot pin, lb (kg) 3586 (1630)
Rollback force at ground level, lb (kg) 5258 (2390)
