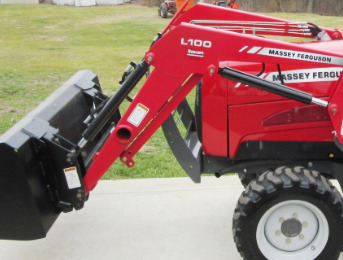

Massey Ferguson L100 Loader

The Massey Ferguson L100 NSL loader is available for Massey Ferguson 1529, 1532 tractors. The MF L100 loader has double acting hydraulic lifting and bucket cylinders. The loader’s maximum lift height is 97.5" (2477 mm) at pin and max bucket dump angle of 43 degrees.

The lifting capacity is 1283 lbs (582 kg) at maximum height (bucket pin), and breakout force (bucket on ground) is 1401 lbs (636 kg). Compatible buckets for the Massey Ferguson L100 front-end loader: a 60" (1530 mm) standard material bucket with a heaped capacity of 0.30 m3 (10.6 cu.ft).

Compatible Tractors
Tractor Models MF 1529, 1532
Front Tires 6,0-14
Rear Tires 12,4-16
Hydraulic System Flow, gpm (lpm) 7.7 (29.1)

Loader
Loader Model MF L100 NSL
Leveling Configuration Non-self leveling
Tool Attachment Pin Type

Standard Material Bucket
Width, in (mm) 60 (1530)
Struck Capacity, cu. ft (m3) 8.5 (0.24)
Heaped Capacity, cu. ft (m3) 10.6 (0.30)

Loader Dimensions
Maximum Lift Height to Pivot Pin, in (mm) 97.5 (2477)
Maximum Dump Angle, degrees 43
Maximum Rollback Angle, degrees 13

Operating Data
Lift Capacity to Maximum Height at Pivot Pin, lbs (kg) 1283 (582)
Lift Capacity to Maximum Height at 500 mm Forward of Pivot Pin, lbs (kg) 876 (397)
Breakout Force at Pivot Pin, lbs (kg) 1401 (636)
