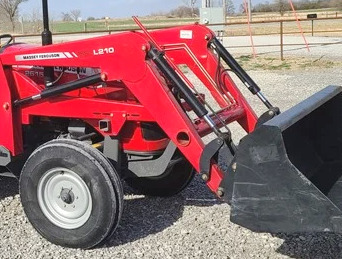

Massey Ferguson L210 Loader
The
Massey Ferguson L210 non-self leveling loader fits MF 2600 Series (2WD)
tractors. The loader has double acting bucket and lift hydraulic cylinders. The
MF L210 front-end loader has a max lift height of 111.2" (2826 mm) at pivot pin
and max bucket dump angle of 55 degrees. The lift capacity is 2650 lbs (1202 kg)
to max height at pin, and boom breakout force is 4290 lbs (1950 kg).
The Massey Ferguson L210 loader is equipped with the following buckets:
a 66" (1720 mm) heavy-duty material bucket with a heaped capacity of
0.34 m3 (11.9 cu.ft), or 72" (1830 mm) heavy-duty material bucket with a
heaped capacity of 0.38 m3 (13.3 cu.ft).
| Tractor Models |
MF 2600 Series (2WD) |
| Front Tires |
7,5-16 |
| Rear Tires |
13,6-28 |
| Hydraulic System Flow, gpm (lpm) |
11.0 (42.0) |
| Loader Model |
MF L210 NSL |
| Leveling Configuration |
Non-self leveling |
| Tool Attachment |
Pin Type |
| Width, in (mm) |
72 (1830) |
| Struck Capacity, cu. ft (m3) |
20 (0.57) |
| Heaped Capacity, cu. ft (m3) |
25 (0.72) |
| 66" Heavy Duty Material Bucket |
| Width, in (mm) |
66 (1720) |
| Struck Capacity, cu. ft (m3) |
10.5 (0.30) |
| Heaped Capacity, cu. ft (m3) |
11.9 (0.34) |
| 72" Heavy Duty Material Bucket |
| Width, in (mm) |
72 (1820) |
| Struck Capacity, cu. ft (m3) |
11.6 (0.33) |
| Heaped Capacity, cu. ft (m3) |
13.3 (0.38) |
| Maximum Lift Height to Pivot Pin, in (mm) |
111.2 (2826) |
| Maximum Dump Angle, degrees |
55 |
| Maximum Rollback Angle, degrees |
28 |
| Lift Capacity to Maximum Height at Pivot Pin, lbs (kg) |
2650 (1202) |
| Lift Capacity to Maximum Height at 31.5" (0.8m) Forward of Pivot Pin, lbs (kg) |
1673 (759) |
| Breakout Force at Pivot Pin, lbs (kg) |
4290 (1950) |
| Breakout Force at 31.5" (0.8m) Forward of Pivot Pin, lbs (kg) |
2859 (1297) |
