Massey Ferguson L90 Loader
The

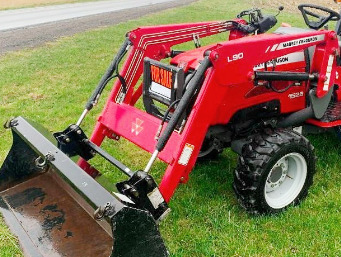

Massey Ferguson L90 non-self leveling loader is used for Massey Ferguson 1526
tractors. The loader hydraulic system includes double-acting bucket and lift
hydraulic cylinders. The MF L90 front end loader has a lifting capacity (at
pivot pin) of 823 lbs (374 kg) to maximum height of 94" (2388 mm), and bucket's
breakout force of 1270 lbs (577 kg).
The maximum bucket dump angle is 43 degrees at full height. The Massey
Ferguson L90 loader is compatible with a 54" (1370 mm) standard material
bucket with a heaped capacity of 0.26 m3 (9.2 cu.ft), or 60" (1530 mm)
standard material bucket with a heaped capacity of 0.30 m3 (10.6 cu.ft).
| Tractor Models |
MF 1526 |
| Front Tires |
25x8.5-14 |
| Rear Tires |
36x13.50-15 |
| Hydraulic System Flow, gpm (lpm) |
5.5 (20.9) |
| Loader Model |
MF L90 NSL |
| Leveling Configuration |
Non-self leveling |
| Lift Cylinder |
Two, double acting |
| Lift Cylinder Diameter, in (mm) |
2.0 (50) |
| Bucket Cylinder |
Two, double acting |
| Bucket Cylinder Diameter, in (mm) |
1.5 (38) |
| Tool Attachment |
Pin Type or skid steer quick |
| 54" Standard Material Bucket |
| Width, in (mm) |
54 (1370) |
| Struck Capacity, cu. ft (m3) |
7.4 (0.21) |
| Heaped Capacity, cu. ft (m3) |
9.2 (0.26) |
| 60" Standard Material Bucket |
| Width, in (mm) |
60 (1530) |
| Struck Capacity, cu. ft (m3) |
8.5 (0.24) |
| Heaped Capacity, cu. ft (m3) |
10.6 (0.30) |
| Maximum Lift Height to Pivot Pin, in (mm) |
94 (2388) |
| Maximum Dump Angle, degrees |
43 |
| Maximum Rollback Angle, degrees |
17 |
| Lift Capacity to Maximum Height at Pivot Pin, lbs (kg) |
823 (374) |
| Lift Capacity to Maximum Height at 500 mm Forward of Pivot Pin, lbs (kg) |
594 (270) |
| Breakout Force at Pivot Pin, lbs (kg) |
1270 (577) |
