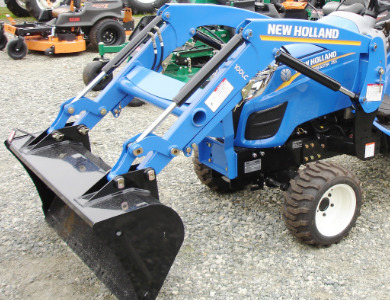

New Holland 100LC Front End Loader

The New Holland 100LC non self-leveling front end loader was designed for New Holland Workmaster 25S tractor. The loader has double acting hydraulic lift and bucket cylinders.

The loader has a lift capacity (at pivot pin) of 1005 lbs (457 kg) to a 72" (1821 mm) maximum height and boom breakout force of 2078 lbs (945 kg). The clearance with a bucket dumped is 51" (1290 mm) at maximum dump angle of 46 degrees.

The raising time is 3.6 sec from ground line to full height, and bucket dump time is 2.3 seconds. The New Holland 100LC loader is compatible with a 50" (1260 mm) standard material bucket with a heaped capacity of 7.4 cu.ft (0.21 m3).

Compatible Tractors
Tractor Models New Holland Workmaster 25S
Front Tires 18x8.5-10
Rear Tires 26x12-12
Hydraulic System Flow, gpm (lpm) 4.6 (17.4)

Loader
Loader Model New Holland 100LC
Leveling System Non self leveling
Weight (w/o Bucket), lbs (kg) 363 (165)

Standard Material Bucket
Width, in (mm) 50 (1260)
Struck Capacity, cu.ft (m3) 5.3 (0.15)
Heaped Capacity, cu.ft (m3) 7.4 (0.21)


Loader Dimensions
Maximum Lift Height to Pivot Pin, in (mm) 72 (1821)
Clearance with Bucket Dumped, in (mm) 51 (1290)
Reach at Maximum Lift Height, in (mm) 23.4 (592)
Digging Depth, in (mm) 4.6 (116)
Maximum Dump Angle, degrees 46
Height in Carry Position, in (mm) 41.5 (1050)
Maximum Rollback Angle, degrees 28

Operating Data
Lift Capacity to Max Height at Bucket Pivot Point, lbs (kg) 1005 (457)
Lift Capacity to Max Height at 19.7" (0.5m) from Bucket Pivot Point, lbs (kg) 693 (315)
Lift Capacity to 59" (1.5m) Height at Bucket Pivot Point, lbs (kg) 1142 (519)
Lift Capacity to 59" (1.5m) Height at 19.7" (0.5m) from Bucket Pivot Point, lbs (kg) 823 (374)
Max Breakout Force at Bucket Pivot Point, lbs (kg) 2078 (945)
Max Breakout Force at 19.7" (0.5m) from Bucket Pivot Point, lbs (kg) 1426 (648)

Cycle Times
Loader Raise, second 3,6
Loader Lower, second 2,1
Bucket Dump, second 2,3
Bucket Rollback, second 1,5
