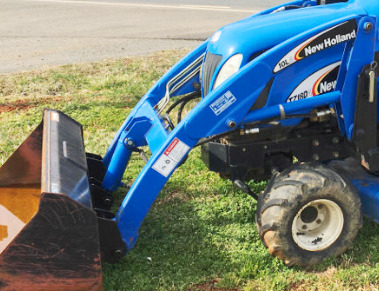

New Holland 10LA Front End Loader

The New Holland 10LA non self-leveling loader fits New Holland TZ18DA, TZ24DA tractors. The loader hydraulic system includes double-acting hydraulic bucket and boom cylinders.

The loader’s maximum lift height is 69.6 inches (1760 mm) at pin and bucket dump clearance is 49.4 inches (1250 mm).

The lift capacity is 662 lbs (299 kg) to full height at pin, and boom breakout force is 1361 lbs (617 kg).

The New Holland 10LA front end loader is compatible with a 48" (1220 mm) standard material bucket with a rated capacity of 0.26 cu.yd (0.2 m3).

Compatible Tractors
Tractor Models New Holland TZ18DA, TZ24DA
Front Tires 18x8.50-8
Rear Tires 26x12.00-12
Hydraulic System Flow, gpm (lpm) 3.8 (14.2)

Loader
Loader Model NH 10LA Quick-Attach
Leveling Configuration Non-self leveling
Weight (w/o Bucket), lbs (kg) 375 (170)

Standard Material Bucket
Width, in (mm) 48 (1220)
Struck Capacity, yd3 (m3) 0.21 (0.16)
Heaped Capacity, yd3 (m3) 0.26 (0.2)


Loader Dimensions
Maximum Lift Height to Pivot Pin, in (mm) 69.6 (1760)
Clearance with Bucket Dumped, in (mm) 49.4 (1250)
Clearance with Level Bucket, in (mm) 62.2 (1570)
Reach at Maximum Lift Height, in (mm) 31.9 (810)
Digging Depth, in (mm) 6.1 (154)
Maximum Dump Angle, degrees 43
Reach with Bucket on Ground, in (mm) 54.5 (1380)
Maximum Rollback Angle, degrees 23

Operating Data
Lift Capacity to Max. Height at Pivot Point, lbs (kg) 662 (299)
Lift Capacity to Max. Height at 19.7" (0.5m) from Bucket Pivot Point, lbs (kg) 464 (211)
Lift Capacity to 59" (1.5m) Height at Pivot Point, lbs (kg) 676 (306)
Lift Capacity to 59" (1.5m) Height at 19.7" (0.5m) from Bucket Pivot Point, lbs (kg) 492 (223)
Max. Breakout Force at Bucket Pivot Point, lbs (kg) 1361 (617)
Max. Breakout Force at 19.7" (0.5m) from Bucket Pivot Point, lbs (kg) 953 (433)
