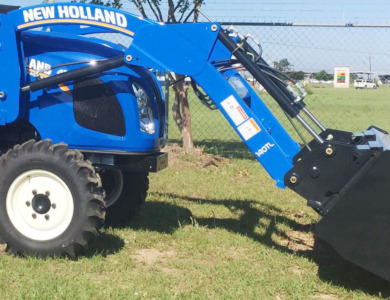

New Holland 140TL Front End Loader

The New Holland 140TL front end loader is available for New Holland Workmaster 33 and Workmaster 37 tractors. The loader is equipped with double acting bucket and lift hydraulic cylinders.

The New Holland 140TL loader’s max lift height is 91.5" (2324 mm) at pin, and reach with bucket on ground is 74" (1880 mm). The lifting capacity is 1250 lbs (567 kg) to full height at pin, and breakout force (bucket on ground) is 2700 lbs (1225 kg). The rated cycle times are 3.8 seconds raising to maximum height, and 2.2 seconds to full bucket dump.

The New Holland 140TL loader is equipped with a 68" (1730 mm) standard material bucket with a rated capacity of 0.53 cu.yd (0.40 m3).

Compatible Tractors
Tractor Models Workmaster 33, 37
Front Tires 25x8.50-14
Rear Tires 41x14.00-20
Hydraulic System Flow, gpm (lpm) 8.2 (31.0)

Loader
Loader Model NH 140TL
Leveling Configuration Non Self-Leveling
Weight (w/o Bucket), lbs (kg) 560 (255)

Standard Material Bucket
Width, in (mm) 68 (1730)
Depth, in (mm) 22.0 (558.8)
Height, in (mm) 21.4 (543)
Length, in (mm) 31.0 (787)
Struck Capacity, cu. yd (m3) 0.43 (0.33)
Heaped Capacity, cu. yd (m3) 0.53 (0.40)
Weight, lbs (kg) 260 (118)


Loader Dimensions
Maximum Lift Height to Pivot Pin, in (mm) 91.5 (2324)
Reach at Maximum Lift Height, in (mm) 12.8 (324)
Maximum Dump Angle, degrees 48
Reach with Bucket on Ground, in (mm) 74 (1880)
Maximum Rollback Angle, degrees 30

Operating Data
Lift Capacity to Max. Height at Pivot Point, lbs (kg) 1250 (567)
Lift Capacity to Max. Height at 0.5m from Bucket Pivot Point, lbs (kg) 1100 (499)
Lift Capacity to 1.5m Height at Pivot Point, lbs (kg) 1500 (680)
Max. Breakout Force at Bucket Pivot Point, lbs (kg) 2700 (1225)
Max. Breakout Force at 0.5m from Bucket Pivot Point, lbs (kg) 1900 (862)

Cycle Times
Loader Raise, second 3,8
Loader Lower, second 1,7
Bucket Dump, second 2,2
Bucket Rollback, second 1,7
