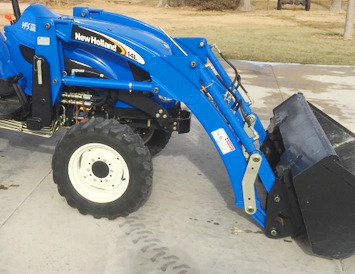

New Holland 14LA Front End Loader
The
New Holland 14LA loader is used for New Holland TC29DA, TC33DA tractors. The
loader is equipped with double acting hydraulic bucket and boom cylinders.
The loader’s maximum lift height is 98.4" (2490 mm) at pin and bucket
dump clearance is 75.3" (1910 mm).
The lift capacity is 1256 lbs (570 kg) at full height (pivot pin), and
boom breakout force is 2712 lbs (1230 kg).
The New Holland 14LA loader is compatible with the following buckets: a
60" (1520 mm) standard material bucket with a heaped capacity of 0.39
cu.yd (0.30 m3), 60" (1520 mm) heavy-duty material bucket with a heaped
capacity of 0.41 cu.yd (0.32 m3), or 68" (1720 mm) heavy-duty material
bucket with a heaped capacity of 0.46 cu.yd (0.35 m3).
| Tractor Models |
New Holland TC29DA, TC33DA |
| Front Tires |
7,00-14 |
| Rear Tires |
11,2-24 |
| Hydraulic System Flow, gpm (lpm) |
7.6 (28.9) |
| Loader Model |
NH 14LA Quick-Attach |
| Leveling System |
Non-self leveling |
| Weight (w/o Bucket), lbs (kg) |
590 (268) |
| 60" Standard Material Bucket |
| Width, in (mm) |
60 (1520) |
| Struck Capacity, yd3 (m3) |
0.33 (0.25) |
| Heaped Capacity, yd3 (m3) |
0.39 (0.30) |
| 60" Heavy-Duty Material Bucket |
| Width, in (mm) |
60 (1520) |
| Struck Capacity, yd3 (m3) |
0.35 (0.27) |
| Heaped Capacity, yd3 (m3) |
0.41 (0.32) |
| 68" Heavy Duty Material Bucket |
| Width, in (mm) |
68 (1720) |
| Struck Capacity, yd3 (m3) |
0.38 (0.31) |
| Heaped Capacity, yd3 (m3) |
0.46 (0.35) |
| Maximum Lift Height to Pivot Pin, in (mm) |
98.4 (2490) |
| Clearance with Bucket Dumped, in (mm) |
75.3 (1910) |
| Clearance with Level Bucket, in (mm) |
91.8 (2330) |
| Reach at Maximum Lift Height, in (mm) |
31.1 (780) |
| Digging Depth, in (mm) |
8.1 (202) |
| Maximum Dump Angle, degrees |
49 |
| Reach with Bucket on Ground, in (mm) |
70.9 (1800) |
| Maximum Rollback Angle, degrees |
30 |
| Lift Capacity to Max. Height at Pivot Point, lbs (kg) |
1256 (570) |
| Lift Capacity to Max. Height at 19.7" (0.5m) from Bucket Pivot Point, lbs (kg) |
880 (400) |
| Lift Capacity to 59" (1.5m) Height at Pivot Point, lbs (kg) |
1596 (724) |
| Lift Capacity to 59" (1.5m) Height at 19.7" (0.5m) from Bucket Pivot Point, lbs (kg) |
1185 (535) |
| Max. Breakout Force at Bucket Pivot Point, lbs (kg) |
2712 (1230) |
| Max. Breakout Force at 19.7" (0.5m) from Bucket Pivot Point, lbs (kg) |
1906 (865) |
