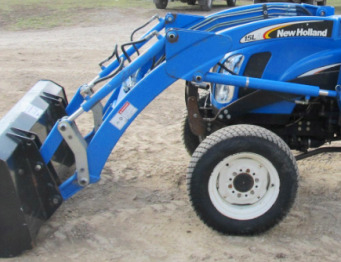

New Holland 15LA Front End Loader

The New Holland 15LA non self leveling front end loader is designed for New Holland TC29DA, TC33DA tractors. The front end loader has double acting hydraulic bucket and lift cylinders. The New Holland 15LA front end loader has a lift capacity (at bucket pin) of 1290 lbs (585 kg) to a max height of 98.7" (2500 mm) and breakout force (bucket on ground) of 2752 lbs (1249 kg). The clearance with a bucket dumped is 75.7" (1920 mm) at a maximum dump angle of 49 degrees.

The New Holland 15LA loader is compatible with the following buckets: a 60" (1520 mm) standard material bucket with a rated capacity of 0.39 m3 (0.3 cu.yd), and 68" (1720 mm) high volume bucket with a rated capacity of 0.58 m3 (0.44 cu.yd).

Compatible Tractors
Tractor Models New Holland TC29DA, TC33DA
Front Tires 7,00-14
Rear Tires 11,2-24
Hydraulic System Flow, gpm (lpm) 7.6 (28.9)

Loader
Loader Model NH 15LA Quick-Attach
Leveling System Non self leveling
Weight (w/o Bucket), lbs (kg) 610 (275)

Standard Material Bucket
Width, in (mm) 60 (1520)
Struck Capacity, cu.yd (m3) 0.33 (0.25)
Heaped Capacity, cu.yd (m3) 0.39 (0.30)

High Volume Bucket
Width, in (mm) 68 (1720)
Struck Capacity, cu.yd (m3) 0.49 (0.37)
Heaped Capacity, cu.yd (m3) 0.58 (0.44)

Loader Dimensions
Maximum Lift Height to Pivot Pin, in (mm) 98.7 (2500)
Clearance with Bucket Dumped, in (mm) 75.7 (1920)
Clearance with Level Bucket, in (mm) 92.4 (2340)
Reach at Maximum Lift Height, in (mm) 35 (880)
Digging Depth, in (mm) 8.1 (202)
Maximum Dump Angle, degrees 49
Reach with Bucket on Ground, in (mm) 66 (1670)
Maximum Rollback Angle, degrees 30

Operating Data
Lift Capacity to Max Height at Bucket Pivot Point, lbs (kg) 1290 (585)
Lift Capacity to Max Height at 19.7" (0.5m) from Bucket Pivot Point, lbs (kg) 905 (410)
Lift Capacity to 59" (1.5m) Height at Pivot Point, lbs (kg) 1580 (715)
Lift Capacity to 59" (1.5m) Height at 19.7" (0.5m) from Bucket Pivot Point, lbs (kg) 1225 (556)
Max Breakout Force at Bucket Pivot Point, lbs (kg) 2752 (1249)
Max Breakout Force at 19.7" (0.5m) from Bucket Pivot Point, lbs (kg) 1930 (875)
