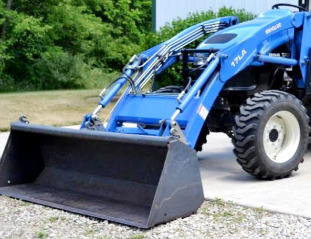

New Holland 17LA Front End Loader
The
New Holland 17LA non self leveling front end loader is designed to fit New
Holland TC35, TC35DA, TC40, and TC45DA tractors. The loader hydraulic system
includes double-acting bucket and boom hydraulic cylinders.
The front end loader has a lift capacity of 1760 (800) for TC35, TC35DA
models or 1955 (885) for TC40, TC40DA models, and boom breakout force of
2930 (1330) for TC35, TC35DA models or 3255 (1476) for TC40, TC40DA
models. The maximum lift height is 106 in (2690 mm) at pivot pin.
The New Holland 17LA loader is compatible with the following buckets:
60" and 72" standard material buckets with a heaped capacity of 0.39
cu.yd (0.30 cu.m) and 0.47 cu.yd (0.36 cu.m), or 60" and 72" heavy-duty
material buckets with a heaped capacity of 0.43 cu.yd (0.33 cu.m) and
0.51 cu.yd (0.39 cu.m).
| Tractor Models |
New Holland TC35, TC35DA, TC40, TC45DA |
| Front Tires |
27x8.50-15, 7.00x14 |
| Rear Tires |
44x18-20, 11.2x24 |
| Hydraulic System Flow, gpm (lpm) |
7.5-10.0 (29-38) |
| Loader Model |
NH 17LA Quick-Attach |
| Leveling System |
Non-self leveling |
| Weight (w/o Bucket), lbs (kg) |
798 (363) |
| 5 ft Standard Material Bucket |
| Width, in (mm) |
60 (1520) |
| Struck Capacity, yd3 (m3) |
0.33 (0.25) |
| Heaped Capacity, yd3 (m3) |
0.39 (0.30) |
| 6 ft Standard Material Bucket |
| Width, in (mm) |
72 (1820) |
| Struck Capacity, yd3 (m3) |
0.39 (0.30) |
| Heaped Capacity, yd3 (m3) |
0.47 (0.36) |
| 5 ft Heavy Duty Material Bucket |
| Width, in (mm) |
60 (1520) |
| Struck Capacity, yd3 (m3) |
0.36 (0.275) |
| Heaped Capacity, yd3 (m3) |
0.43 (0.33) |
| 6 ft Heavy Duty Material Bucket |
| Width, in (mm) |
72 (1820) |
| Struck Capacity, yd3 (m3) |
0.44 (0.335) |
| Heaped Capacity, yd3 (m3) |
0.51 (0.39) |
| Maximum Lift Height to Pivot Pin, in (mm) |
106 (2690) |
| Clearance with Bucket Dumped, in (mm) |
82 (2080) |
| Clearance with Level Bucket (TC35, TC35DA), in (mm) |
99.8 (2530) |
| Clearance with Level Bucket (TC40, TC45DA), in (mm) |
99 (2510) |
| Reach at Maximum Lift Height, in (mm) |
43.3 (1090) |
| Digging Depth, in (mm) |
7 (177) |
| Maximum Dump Angle, degrees |
60 |
| Reach with Bucket on Ground, in (mm) |
73 (1850) |
| Maximum Rollback Angle, degrees |
32 |
| Lift Capacity to Full Height at Pivot Point (TC35, TC35DA), lbs (kg) |
1760 (800) |
| Lift Capacity to Full Height at Pivot Point (TC40, TC45DA), lbs (kg) |
1955 (885) |
| Lift Capacity to Full Height at 19.7" from Pivot Point (TC35, TC35DA), lbs (kg) |
1390 (630) |
| Lift Capacity to Full Height at 19.7" from Pivot Point (TC40, TC45DA), lbs (kg) |
1545 (700) |
| Lift Capacity to 59" Height at Pivot Point (TC35, TC35DA), lbs (kg) |
1936 (880) |
| Lift Capacity to 59" Height at Pivot Point (TC40, TC45DA), lbs (kg) |
2130 (965) |
| Lift Capacity to 59" Height at 19.7" from Pivot Point (TC35, TC35DA), lbs (kg) |
1500 (680) |
| Lift Capacity to 59" Height at 19.7" from Pivot Point (TC40, TC45DA), lbs (kg) |
1725 (780) |
| Breakout Force at Pivot Point (TC35, TC35DA), lbs (kg) |
2930 (1330) |
| Breakout Force at Pivot Point (TC40, TC45DA), lbs (kg) |
3255 (1476) |
| Breakout Force at 19.7" from Pivot Point (TC35, TC35DA), lbs (kg) |
2223 (1010) |
| Breakout Force at 19.7" from Pivot Point (TC40, TC45DA), lbs (kg) |
2470 (1120) |
