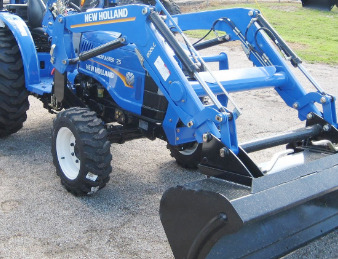

New Holland 200LC Front End Loader

The New Holland 200LC non self leveling loader is compatible with New Holland Workmaster 25 tractor. The front end loader has double acting boom and bucket hydraulic cylinders. The New Holland 200LC loader has a lift capacity (at pivot pin) of 1600 lbs (727 kg) to a maximum height of 94.3" (2386 mm) and breakout force of 2637 lbs (1200 kg) with bucket on ground.

A full dump clearance with a 52-degree max dump angle is 64.3" (1627 mm). The rated cycle times are 3.1 seconds raising to maximum height, and 1.7 seconds full bucket dumping. The New Holland 200LC loader is equipped with a 66" (1670 mm) standard material bucket with a rated capacity of 0.41 m3 (14.5 cu.ft).

Compatible Tractors
Tractor Models New Holland Workmaster 25
Front Tires 25x8.50-14 R4
Rear Tires 43x16.00-20 R4
Hydraulic System Flow, gpm (lpm) 7.9 (30.1)

Loader
Loader Model New Holland 200LC
Leveling System Non self leveling
Weight (with Bucket), lbs (kg) 1180 (535)

Standard Material Bucket
Width, in (mm) 66 (1670)
Struck Capacity, cu.ft (m3) 9.5 (0.27)
Heaped Capacity, cu.ft (m3) 14.5 (0.41)

Loader Dimensions
Maximum Lift Height to Pivot Pin, in (mm) 94.3 (2386)
Clearance with Bucket Dumped, in (mm) 64.3 (1627)
Reach at Maximum Lift Height, in (mm) 18.2 (460)
Digging Depth, in (mm) 4.3 (109)
Maximum Dump Angle, degrees 52
Height in Carry Position, in (mm) 51.3 (1298)
Maximum Rollback Angle, degrees 41

Operating Data
Lift Capacity to Max Height at Bucket Pivot Point, lbs (kg) 1600 (727)
Lift Capacity to Max Height at 19.7" (0.5m) from Bucket Pivot Point, lbs (kg) 1214 (552)
Lift Capacity to 59" (1.5m) Height at Bucket Pivot Point, lbs (kg) 1955 (890)
Lift Capacity to 59" (1.5m) Height at 19.7" (0.5m) from Bucket Pivot Point, lbs (kg) 1508 (686)
Max Breakout Force at Bucket Pivot Point, lbs (kg) 2637 (1200)
Max Breakout Force at 19.7" (0.5m) from Bucket Pivot Point, lbs (kg) 1926 (875)

Cycle Times
Loader Raise, second 3,1
Loader Lower, second 2,1
Bucket Dump, second 1,7
Bucket Rollback, second 2,7
