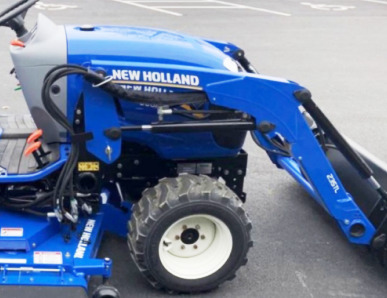

New Holland 235TL Front End Loader

The New Holland 235TL non self leveling loader is available for New Holland Boomer 24 tractor. The loader hydraulic system includes double-acting hydraulic boom and bucket cylinders.

The loader’s max lift height is 80.7 inches (2050 mm) at pin, and bucket dump clearance is 69.5 inches (1765 mm). The lifting capacity is 1034 lbs (470 kg) at maximum height (pivot pin), and breakout force (bucket on ground) is 1672 lbs (760 kg).

The rated cycle times are 2.5 seconds lifting to full height, and 2.4 seconds to full bucket dump. The New Holland 235TL front-end loader is equipped with a 54" (1370 mm) standard material bucket with a heaped capacity of 6.3 cu.ft (0.18 m3).

Compatible Tractors
Tractor Models New Holland Boomer 24
Front Tires 23x8.5-12
Rear Tires 33x12.0-16
Hydraulic System Flow, gpm (lpm) 6.7 (25.4)

Loader
Loader Model New Holland 235TL
Leveling System Non self leveling
Weight (w/o Bucket), lbs (kg) 545 (250)

Standard Material Bucket
Width, in (mm) 54 (1370)
Struck Capacity, cu.ft (m3) 5.3 (0.15)
Heaped Capacity, cu.ft (m3) 6.3 (0.18)


Loader Dimensions
Maximum Lift Height to Pivot Pin, in (mm) 80.7 (2050)
Clearance with Bucket Dumped, in (mm) 69.5 (1765)
Reach at Maximum Lift Height, in (mm) 25.2 (640)
Digging Depth, in (mm) 3.9 (100)
Maximum Dump Angle, degrees 51
Maximum Rollback Angle, degrees 29

Operating Data
Lift Capacity to Max Height at Bucket Pivot Point, lbs (kg) 1034 (470)
Lift Capacity to Max Height at 19.7" (0.5m) from Bucket Pivot Point, lbs (kg) 704 (320)
Lift Capacity to 59" (1.5m) Height at Bucket Pivot Point, lbs (kg) 1298 (590)
Lift Capacity to 59" (1.5m) Height at 19.7" (0.5m) from Bucket Pivot Point, lbs (kg) 968 (440)
Max Breakout Force at Bucket Pivot Point, lbs (kg) 1672 (760)
Max Breakout Force at 19.7" (0.5m) from Bucket Pivot Point, lbs (kg) 1166 (530)
Bucket Rollback Force at Ground Level, lbs (kg) 1298 (590)

Cycle Times
Loader Raise, second 2,5
Loader Lower, second 1,2
Bucket Dump, second 2,4
Bucket Rollback, second 1,2
