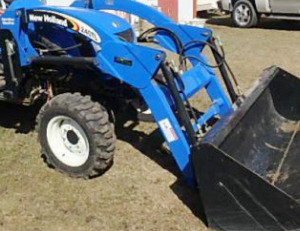

New Holland 240TL Front End Loader

The New Holland 240TL non self-leveling loader is designed for New Holland Boomer 2030 and Boomer 2035 tractors. The loader is equipped with double acting lift and bucket hydraulic cylinders.

The loader’s maximum lift height is 98.4 inches (2499 mm) at pin and, bucket dump clearance is 75.3 inches (1913 mm). The lifting capacity is 1250 lb (567 kg) at max. height (bucket pin), and breakout force is 2700 lb (1225 kg). The estimated cycle times are 4.1 seconds raising to full height, and 1.5 seconds to full bucket dump.

The New Holland 240TL loader is equipped with a 60" (1520 mm) heavy-duty material bucket with a heaped capacity of 0.47 cu.yd (0.36 m3), or 68" (1720 mm) standard material bucket with a heaped capacity of 0.53 cu.yd (0.41 m3).

Compatible Tractors
Tractor Models Boomer 2030, 2035
Front Tires 7.0-14 6PR
Rear Tires 11.2-24 4PR
Hydraulic System Flow, gpm (lpm) 7.2 (27.3)

Loader
Loader Model NH 240TL
Leveling Configuration Non Self-Leveling
Weight (w/o Bucket), lbs (kg) 590 (268)

Heavy-Duty Material Bucket
Width, in (mm) 60 (1520)
Struck Capacity, cu. yd (m3) 0.38 (0.29)
Heaped Capacity, cu. yd (m3) 0.47 (0.36)

Standard Material Bucket
Width, in (mm) 68 (1720)
Struck Capacity, cu. yd (m3) 0.43 (0.33)
Heaped Capacity, cu. yd (m3) 0.53 (0.41)


Loader Dimensions
Maximum Lift Height to Pivot Pin, in (mm) 98.4 (2499)
Clearance with Bucket Dumped, in (mm) 75.3 (1913)
Clearance with Level Bucket, in (mm) 91.8 (2332)
Reach at Maximum Lift Height, in (mm) 31 (787)
Digging Depth, in (mm) 8 (203)
Maximum Dump Angle, degrees 39
Reach with Bucket on Ground, in (mm) 70.9 (1801)
Maximum Rollback Angle, degrees 32

Operating Data
Lift Capacity to Max. Height at Pivot Point, lbs (kg) 1250 (567)
Lift Capacity to Max. Height at 0.5m from Bucket Pivot Point, lbs (kg) 875 (397)
Lift Capacity to 1.5m Height at Pivot Point, lbs (kg) 1596 (724)
Lift Capacity to 1.5m Height at 0.5m from Bucket Pivot Point, lbs (kg) 1183 (537)
Max. Breakout Force at Bucket Pivot Point, lbs (kg) 2700 (1225)
Max. Breakout Force at 0.5m from Bucket Pivot Point, lbs (kg) 1900 (862)

Cycle Times
Loader Raise, second 4,1
Loader Lower, second 2,2
Bucket Dump, second 1,5
Bucket Rollback, second 2,1
