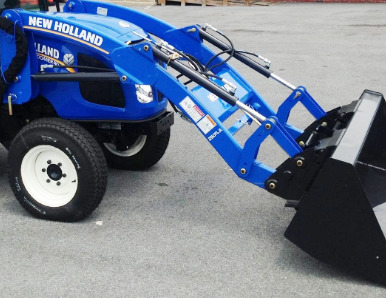

New Holland 250TLA Front End Loader
The
New Holland 250TLA loader was designed for New Holland Boomer 35, Boomer 40
tractors. The front end loader hydraulic system includes double-acting bucket
and lift hydraulic cylinders.
The loader’s max lift height is 104" (2642 mm) at pin, and bucket dump
clearance is 77" (1956 mm). The lifting capacity is 1822 lb (826 kg) at
full height (bucket pin), and boom breakout force is 3257 lb (1477 kg).
The estimated cycle times are 3.8 seconds raising to full height, and
3.5 seconds maximum bucket dumping.
The New Holland 250TLA is equipped with a 68-in (1720 mm) standard
material bucket with a nominal heaped capacity of 0.53 cu.yd (0.40 m3).
| Tractor Models |
New Holland Boomer 35, 40 |
| Front Tires |
10x16.5 6PR |
| Rear Tires |
43-16.00-20 4PR |
| Hydraulic System Flow, gpm (lpm) |
8.2 (31.0) |
| Loader Model |
NH 250 TLA |
| Leveling Configuration |
Non Self-Leveling |
| Weight (w/o Bucket), lbs (kg) |
748 (339) |
| Width, in (mm) |
68 (1720) |
| Struck Capacity, cu. yd (m3) |
0.43 (0.33) |
| Heaped Capacity, cu. yd (m3) |
0.53 (0.40) |
| Maximum Lift Height to Pivot Pin, in (mm) |
104 (2642) |
| Clearance with Bucket Dumped, in (mm) |
77 (1956) |
| Clearance with Level Bucket, in (mm) |
98 (2489) |
| Reach at Maximum Lift Height, in (mm) |
48 (1219) |
| Digging Depth, in (mm) |
6.8 (173) |
| Maximum Dump Angle, degrees |
48 |
| Reach with Bucket on Ground, in (mm) |
78 (1980) |
| Maximum Rollback Angle, degrees |
30 |
| Lift Capacity to Max. Height at Pivot Point, lbs (kg) |
1822 (826) |
| Lift Capacity to Max. Height at 0.5m from Bucket Pivot Point, lbs (kg) |
1354 (614) |
| Lift Capacity to 1.5m Height at Pivot Point, lbs (kg) |
2176 (987) |
| Lift Capacity to 1.5m Height at 0.5m from Bucket Pivot Point, lbs (kg) |
1686 (765) |
| Max. Breakout Force at Bucket Pivot Point, lbs (kg) |
3257 (1477) |
| Max. Breakout Force at 0.5m from Bucket Pivot Point, lbs (kg) |
2444 (1109) |
| Loader Raise, second |
3,8 |
| Loader Lower, second |
2,1 |
| Bucket Dump, second |
3,5 |
| Bucket Rollback, second |
2,2 |
