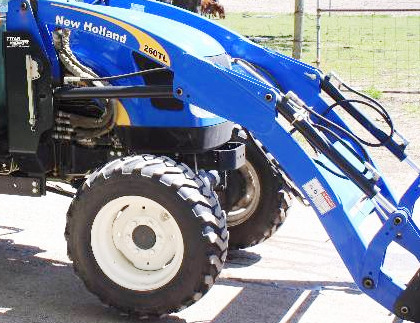

New Holland 260TL Front End Loader

The New Holland 260TL NSL front end loader fits New Holland Boomer 3040, 3045 (with SuperSteer) tractors. The front end loader has double acting bucket and boom hydraulic cylinders.

The loader has a lift capacity (at pivot pin) of 1955 lbs (887 kg) to max height of 106" (2692 mm) and bucket's breakout force of 3254 lbs (1476 kg). The clearance with a bucket dumped is 82" (2083 mm) at max dump angle of 60 degrees.

The rated cycle times are 4.2 seconds lifting to maximum height, and 1.9 seconds full bucket dumping. The New Holland 260TL loader is compatible with a 72" (1820 mm) heavy-duty material bucket with a heaped capacity of 0.57 cu.yd (0.44 m3).

Compatible Tractors
Tractor Models New Holland Boomer 3040, 3045 (with SuperSteer)
Front Tires 8.0x16
Rear Tires 14.9x24
Hydraulic System Flow, gpm (lpm) 9.8 (37.1)

Loader
Loader Model New Holland 260TL
Leveling System Non self leveling
Weight (w/o Bucket), lbs (kg) 798 (362)

Heavy-Duty Material Bucket
Width, in (mm) 72 (1820)
Struck Capacity, cu.yd (m3) 0.46 (0.35)
Heaped Capacity, cu.yd (m3) 0.57 (0.44)


Loader Dimensions
Maximum Lift Height to Pivot Pin, in (mm) 106 (2692)
Clearance with Bucket Dumped, in (mm) 82 (2083)
Clearance with Level Bucket, in (mm) 99 (2515)
Reach at Maximum Lift Height, in (mm) 43.25 (1100)
Digging Depth, in (mm) 7.0 (178)
Maximum Dump Angle, degrees 60
Reach with Bucket on Ground, in (mm) 73 (1850)
Maximum Rollback Angle, degrees 32

Operating Data
Lift Capacity to Max Height at Bucket Pivot Point, lbs (kg) 1955 (887)
Lift Capacity to Max Height at 19.7" (0.5m) from Bucket Pivot Point, lbs (kg) 1545 (701)
Lift Capacity to 59" (1.5m) Height at Bucket Pivot Point, lbs (kg) 2128 (965)
Lift Capacity to 59" (1.5m) Height at 19.7" (0.5m) from Bucket Pivot Point, lbs (kg) 1726 (783)
Max Breakout Force at Bucket Pivot Point, lbs (kg) 3254 (1476)
Max Breakout Force at 19.7" (0.5m) from Bucket Pivot Point, lbs (kg) 2470 (1120)

Cycle Times
Loader Raise, second 4,2
Loader Lower, second 3,2
Bucket Dump, second 1,9
Bucket Rollback, second 2,6
