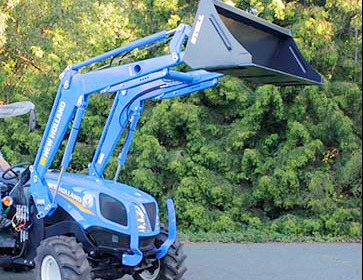

New Holland 330TL Front End Loader

The New Holland 330TL non self-leveling or mechanical self-leveling loader is compatible with New Holland Boomer 20, Boomer 25 tractors. The loader hydraulic system includes double-acting hydraulic lifting and bucket cylinders. The MSL loader has a maximum lift height of 90.5 inches (2290 mm) at pin and bucket dump angle at maximum height of 40 degrees.

The lifting capacity is 1210 lbs (551 kg) at max height (bucket pin), and boom breakout force is 1437 lbs (653 kg). The New Holland 330TL front-end loader is equipped with a 54" (1370 mm) standard material bucket with a heaped capacity of 6.3 cu.ft (0.18 m3).

Compatible Tractors
Tractor model New Holland Boomer 20, Boomer 25
Front tires 6,00-12
Rear tires 9,5-16
Pump capacity, gpm (lpm) 6.0 (22.7)

Loader
Loader model New Holland 330TL NSL / MSL
Leveling configuration Non Self Leveling / Mechanical Self Leveling
Weight w/o bucket (NSL), lb (kg) 407 (185)
Weight w/o bucket (MSL), lb (kg) 450 (205)

Standard Material Bucket
Width, in (mm) 54 (1370)
Struck capacity, cu.ft (m3) 5.25 (0.15)
Heaped capacity, cu.ft (m3) 6.3 (0.18)


Loader Dimensions
Maximum lift height at pivot pin, in (mm) 90.5 (2290)
Maximum rollback angle at ground level (NSL), degrees 39
Maximum rollback angle at ground level (NSL), degrees 40
Maximum dump angle at maximum height (MSL), degrees 53
Maximum dump angle at maximum height (NSL), degrees 80

Operating Data
Lift capacity to maximum height at pivot pin, lb (kg) 1210 (551)
Breakout force at pivot pin, lb (kg) 1437 (653)
Bucket rollback force at ground level (NSL), lb (kg) 1346 (612)
Bucket rollback force at ground level (MSL), lb (kg) 1907 (867)
