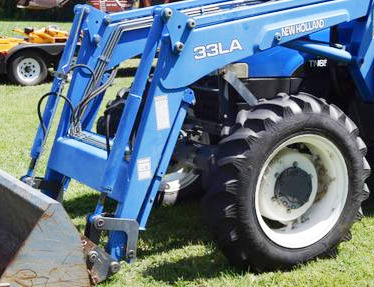

New Holland 33LA Front End Loader

The New Holland 33LA NSL or MSL front-end loader is used for New Holland TN55, TN65, TN70, TN75 tractors. The loader hydraulic system includes double-acting lifting and bucket hydraulic cylinders.

The NSL front end loader has a lifting capacity at pivot pin of 3523 lbs (1598 kg) to full height of 131" (3320 mm), and boom breakout force of 6295 lbs (2855 kg). The bucket dump clearance (NSL) is 104" (2640) at max dump angle of 46 degrees.

The New Holland 33LA loader is equipped with the following buckets: a 72" (1820 mm) heavy-duty material bucket with a heaped capacity of 21.3 cu.ft (0.61 m3), or 84" (2130 mm) heavy-duty material bucket with a heaped capacity of 24.9 cu.ft (0.71 m3).

Compatible Tractors
Tractor Models New Holland TN55, TN65, TN70, TN75
Front Tire Sizes 8.30x24
Rear Tire Sizes 14.9x28
Pump Capacity, gpm (lpm) 17.0 (64.0)

Loader
Loader Model New Holland 33LA
Leveling System Non-self leveling (NSL) / Mechanical self leveling (MSL)
Weight, lb (kg) 1120 (510)

72" Heavy-Duty Material Bucket
Width, in (mm) 72 (1830)
Struck Capacity, cu.ft (m3) 16.9 (0.48)
Heaped Capacity, cu.ft (m3) 21.3 (0.61)
Weight, lb (kg) 555 (252)

84" Heavy-Duty Material Bucket
Width, in (mm) 84 (2130)
Struck Capacity, cu.ft (m3) 19.7 (0.56)
Heaped Capacity, cu.ft (m3) 24.9 (0.71)
Weight, lb (kg) 630 (286)


Loader Dimensions
Maximum Lift Height at Pivot Pin, in (mm) 131 (3320)
Reach at Maximum Height (NSL), in (mm) 27.5 (690)
Reach at Maximum Height (MSL), in (mm) 25.5 (640)
Maximum Dump Angle (NSL), deg 46
Maximum Dump Angle (MSL), deg 60
Maximum Rollback Angle (NSL), deg 18
Maximum Rollback Angle (MSL), deg 40

Operating Data
Lift Capacity to Maximum Height at Pin (NSL), lbs (kg) 3523 (1598)
Lift Capacity to Maximum Height at Pin (MSL), lbs (kg) 3110 (1410)
Lift Capacity to Maximum Height at 31.5" (0.8m) from Pin (NSL), lbs (kg) 2510 (1138)
Lift Capacity to Maximum Height at 31.5" (0.8m) from Pin (MSL), lbs (kg) 2960 (1342)
Breakout Force at Pin (NSL), lbs (kg) 6295 (2855)
Breakout Force at Pin (MSL), lbs (kg) 5450 (2472)
Breakout Force at 31.5" (0.8m) from Pin (NSL), lbs (kg) 4493 (2038)
Breakout Force at 31.5" (0.8m) from Pin (MSL), lbs (kg) 4845 (2197)
