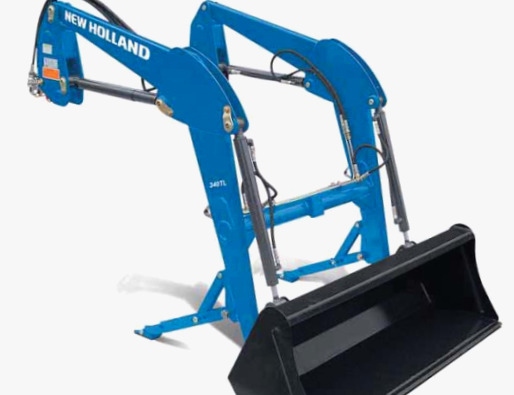

New Holland 340TL Front End Loader

The New Holland 340TL non self Leveling or mechanical self leveling front end loader is used for New Holland Boomer 30, Boomer 35 tractors. The loader is equipped with double acting lift and bucket hydraulic cylinders.

The loader’s maximum lift height is 96.2" (2435 mm) at pin, and lift capacity is 1773 lbs (806 kg) at full height (bucket pin). The bucket rollback force is 2155 lbs (979 kg) at ground level, and boom breakout force is 2130 lbs (969 kg).

Compatible buckets for the New Holland 340TL loader: a 54" (1370 mm) standard material bucket with a heaped capacity of 9.5 cu.ft (0.27 m3), 60" (1520 mm) standard material bucket with a heaped capacity of 10.5 cu.ft (0.30 m3), or 68" (1720 mm) standard material bucket with a heaped capacity of 11.9 cu.ft (0.34 m3).

Compatible Tractors
Tractor model New Holland Boomer 30, Boomer 35
Front tires 25x8.50-14
Rear tires 41x14.00-20
Pump capacity, gpm (lpm) 8.2 (31.0)

Loader
Loader model New Holland 340TL NSL / MSL
Leveling configuration Non Self Leveling / Mechanical Self Leveling
Weight without bucket (NSL), lb (kg) 462 (210)
Weight without bucket (MSL), lb (kg) 506 (230)

54" Standard Material Bucket
Width, in (mm) 54 (1350)
Struck capacity, cu.ft (m3) 7.7 (0.22)
Heaped capacity, cu.ft (m3) 9.5 (0.27)

60" Standard Material Bucket
Width, in (mm) 60 (1520)
Struck capacity, cu.ft (m3) 8.75 (0.25)
Heaped capacity, cu.ft (m3) 10.5 (0.30)


68" Standard Material Bucket
Width, in (mm) 68 (1720)
Struck capacity, cu.ft (m3) 9.8 (0.28)
Heaped capacity, cu.ft (m3) 11.9 (0.34)

Loader Dimensions
Maximum lift height at pivot pin, in (mm) 96.2 (2435)
Maximum rollback angle at ground level (NSL), degrees 38
Maximum dump angle at maximum height (MSL), degrees 65
Maximum dump angle at maximum height (NSL), degrees 74

Operating Data
Lift capacity to maximum height at pivot pin, lb (kg) 1773 (806)
Breakout force at pivot pin, lb (kg) 2130 (969)
Bucket rollback force at ground level, lb (kg) 2155 (979)
