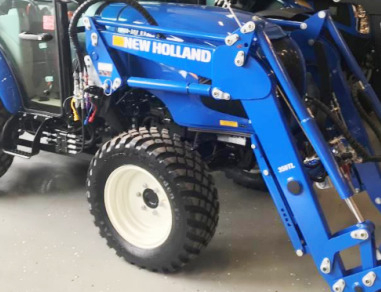

New Holland 350TL Front End Loader

The New Holland 350TL NSL or MSL loader is used for New Holland Boomer 40, Boomer 50 tractors. The loader has double acting bucket and boom hydraulic cylinders.

The MSL loader’s max lift height is 102.4 inches (2590 mm) at pin, and maximum dump angle at full height is 50 degrees. The lifting capacity is 2064 lbs (938 kg) at max height (bucket pin), and bucket's breakout force is 2180 kg (990 lbs).

The New Holland 350TL front-end loader is equipped with the following buckets: a 60" (1520 mm) heavy-duty material bucket with a heaped capacity of 12.6 cu.ft (0.36 m3), or 68" (1720 mm) heavy-duty material bucket with a heaped capacity of 14.4 cu.ft (0.41 m3).

Compatible Tractors
Tractor model New Holland Boomer 40, Boomer 50
Front tires 9.5x16
Rear tires 13.6x24
Pump capacity, gpm (lpm) 8.2 (31.0)

Loader
Loader model New Holland 350TL NSL / MSL
Leveling configuration Non Self Leveling / Mechanical Self Leveling
Weight without bucket (NSL), lb (kg) 550 (250)
Weight without bucket (MSL), lb (kg) 594 (270)

60" Heavy-Duty Material Bucket
Width, in (mm) 60 (1520)
Struck capacity, cu.ft (m3) 10.2 (0.29)
Heaped capacity, cu.ft (m3) 12.6 (0.36)


68" Heavy-Duty Material Bucket
Width, in (mm) 68 (1720)
Struck capacity, cu.ft (m3) 11.6 (0.33)
Heaped capacity, cu.ft (m3) 14.4 (0.41)

Loader Dimensions
Maximum lift height at pivot pin, in (mm) 102.4 (2590)
Maximum rollback angle at ground level, degrees 41
Maximum dump angle at maximum height (MSL), degrees 50
Maximum dump angle at maximum height (NSL), degrees 74

Operating Data
Lift capacity to maximum height at pivot pin, lb (kg) 2064 (938)
Breakout force at pivot pin, lb (kg) 2180 (990)
Bucket rollback force at ground level (NSL), lb (kg) 2064 (938)
Bucket rollback force at ground level (MSL), lb (kg) 2266 (1030)
