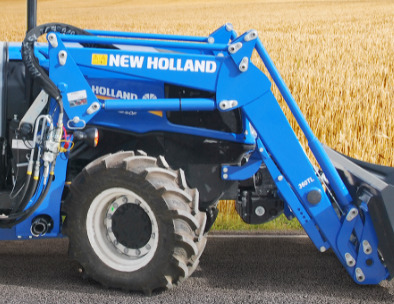

New Holland 360TL Front End Loader
The
New Holland 360TL non self-leveling or mechanical self-leveling loader fits New
Holland TD3.50 tractor. The front end loader has double acting hydraulic boom
and bucket cylinders.
The MSL front end loader has a lifting capacity (at pin) of 2512 lbs
(1142 kg) to a max height of 110.7 inches (2800 mm) and bucket's
breakout force of 2625 lbs (1193 kg). The bucket dump angle is 70
degrees at maximum height.
Compatible buckets for the New Holland 360TL loader: a 68" (1720 mm)
heavy-duty material bucket with a heaped capacity of 14.4 cu.ft (0.41
m3), and 72" (1820 mm) heavy-duty material bucket with a heaped capacity
of 15.4 cu.ft (0.44 m3).
| Tractor model |
New Holland TD3.50 |
| Front tires |
280/70R16 |
| Rear tires |
13.6R28 |
| Pump capacity, gpm (lpm) |
10.5 (40.0) |
| Loader model |
New Holland 360TL NSL / MSL |
| Leveling configuration |
Non Self Leveling / Mechanical Self Leveling |
| Weight without bucket (NSL), lb (kg) |
594 (270) |
| Weight without bucket (MSL), lb (kg) |
638 (290) |
| 68" Heavy-Duty Material Bucket |
| Width, in (mm) |
68 (1720) |
| Struck capacity, cu.ft (m3) |
11.6 (0.33) |
| Heaped capacity, cu.ft (m3) |
14.4 (0.41) |
| 72" Heavy-Duty Material Bucket |
| Width, in (mm) |
72 (1820) |
| Struck capacity, cu.ft (m3) |
12.3 (0.35) |
| Heaped capacity, cu.ft (m3) |
15.4 (0.44) |
| Maximum lift height at pivot pin, in (mm) |
110.7 (2800) |
| Maximum rollback angle at ground level, degrees |
41 |
| Maximum dump angle at maximum height, degrees |
70 |
| Lift capacity to maximum height at pivot pin, lb (kg) |
2512 (1142) |
| Breakout force at pivot pin, lb (kg) |
2625 (1193) |
| Bucket rollback force at ground level, lb (kg) |
3208 (1458) |
