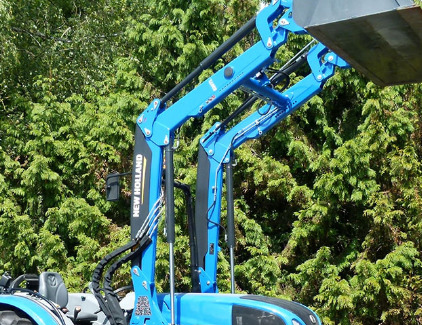

New Holland 520TL Front End Loader

The New Holland 520TL non self-leveling or mechanical self-leveling loader was designed for New Holland T4000 Series, T4 Series, TD5.75 tractors. The loader is equipped with double acting hydraulic lifting and bucket cylinders. The front end loader has a lifting capacity (at pin) of 2715 lbs (1234 kg) to a 136.8 inches (3460 mm) maximum height and boom breakout force of 3858 lbs (1754 kg).

The bucket dump clearance with a 63-degree maximum dump angle is 94.5 inches (2390 mm). The New Holland 520TL front-end loader is compatible with a 68" (1720 mm) standard material bucket with a heaped capacity of 14.4 cu.ft (0.41 m3).

Compatible Tractors
Tractor model New Holland T4000 Series, T4 Series, TD5.75
Front tires 12.4x20R1
Rear tires 16.9x28R1
Pump capacity, gpm (lpm) 16.1 (61.0)

Loader
Loader model New Holland 520TL NSL / MSL
Leveling configuration Non Self Leveling / Mechanical Self Leveling
Weight without bucket (NSL), lb (kg) 638 (290)
Weight without bucket (MSL), lb (kg) 737 (335)

Standard Material Bucket
Width, in (mm) 68 (1720)
Struck capacity, cu.ft (m3) 11.6 (0.33)
Heaped capacity, cu.ft (m3) 14.4 (0.41)


Loader Dimensions
Maximum lift height at pivot pin, in (mm) 136.8 (3460)
Maximum lift height under level bucket, in (mm) 128.5 (3250)
Clearance with bucket dumped, in (mm) 94.5 (2390)
Digging depth, in (mm) 8.3 (210)
Reach at ground, bucket level, in (mm) 65.6 (1660)
Reach at maximum height, in (mm) 25.7 (650)
Maximum rollback angle at ground level, degrees 43
Maximum dump angle at maximum height, degrees 63

Operating Data
Lift capacity to maximum height at pivot pin, lb (kg) 2715 (1234)
Lift capacity to maximum height at 19.7" (0.5m) from pivot pin (NSL), lb (kg) 2245 (1020)
Lift capacity to maximum height at 19.7" (0.5m) from pivot pin (MSL), lb (kg) 2715 (1234)
Breakout force at pivot pin, lb (kg) 3858 (1754)
Breakout force at 19.7" (0.5m) from pivot pin (NSL), lb (kg) 3256 (1480)
Breakout force at 19.7" (0.5m) from pivot pin (MSL), lb (kg) 3858 (1754)
Bucket rollback force at ground level (NSL), lb (kg) 3340 (1519)
Bucket rollback force at ground level (MSL), lb (kg) 4912 (2233)
