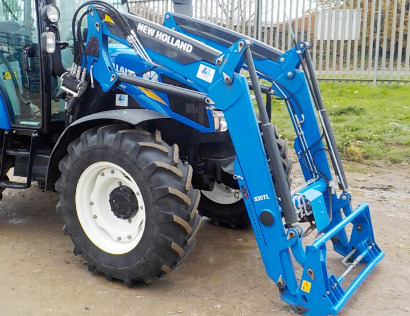

New Holland 530TL Front End Loader

The New Holland 530TL NSL or MSL front end loader is designed to fit New Holland TD5.85, T5000 Series tractors. The loader has double acting hydraulic bucket and lifting cylinders. The loader has a lift capacity (at pivot pin) of 3005 lbs (1366 kg) to full height of 148.6" (3760 mm), and breakout force (bucket on ground) of 4173 lbs (1897 kg).

The bucket dump clearance is 107.1" (2710 mm) at max dump angle of 58 degrees. The New Holland 530TL loader is equipped with a 72" (1820 mm) standard material bucket with a heaped capacity of 15.4 cu.ft (0.44 m3).

Compatible Tractors
Tractor model New Holland TD5.85, T5000 Series
Front tires 11.2 R24
Rear tires 16.9 R30
Pump capacity, gpm (lpm) 16.1 (61.0)

Loader
Loader model New Holland 530TL NSL / MSL
Leveling configuration Non Self Leveling / Mechanical Self Leveling
Weight without bucket (NSL), lb (kg) 693 (315)
Weight without bucket (MSL), lb (kg) 781 (355)

Standard Material Bucket
Width, in (mm) 72 (1820)
Struck capacity, cu.ft (m3) 12.3 (0.35)
Heaped capacity, cu.ft (m3) 15.4 (0.44)

Loader Dimensions
Maximum lift height at pivot pin, in (mm) 148.6 (3760)
Maximum lift height under level bucket, in (mm) 140.3 (3550)
Clearance with bucket dumped, in (mm) 107.1 (2710)
Digging depth, in (mm) 8.3 (210)
Reach at ground, bucket level, in (mm) 70.4 (1780)
Reach at maximum height, in (mm) 27.7 (700)
Maximum rollback angle at ground level, degrees 46
Maximum dump angle at maximum height, degrees 58

Operating Data
Lift capacity to maximum height at pivot pin, lb (kg) 3005 (1366)
Lift capacity to maximum height at 19.7" (0.5m) from pivot pin (NSL), lb (kg) 2512 (1142)
Lift capacity to maximum height at 19.7" (0.5m) from pivot pin (MSL), lb (kg) 3005 (1366)
Breakout force at pivot pin, lb (kg) 4173 (1897)
Breakout force at 19.7" (0.5m) from pivot pin (NSL), lb (kg) 3564 (1620)
Breakout force at 19.7" (0.5m) from pivot pin (MSL), lb (kg) 4173 (1897)
Bucket rollback force at ground level (NSL), lb (kg) 4510 (2050)
Bucket rollback force at ground level (MSL), lb (kg) 5025 (2284)
