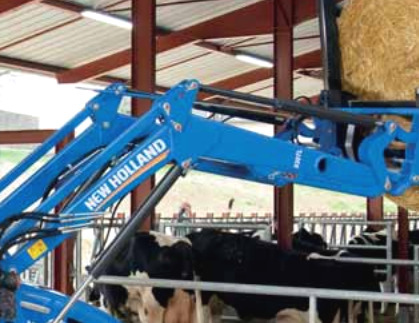

New Holland 540TL Front End Loader

The New Holland 540TL NSL or MSL front-end loader is available for New Holland T5000 series tractors. The front end loader hydraulic system includes double-acting hydraulic bucket and lift cylinders.

The loader has a lifting capacity (at pin) of 3278 lbs (1490 kg) to full height of 161.3 in (4080 mm) and breakout force of 4463 lbs (2029 kg). The clearance with a bucket dumped is 120.2 in (3040 mm) at maximum dump angle of 58 degrees.

The New Holland 540TL loader is compatible with the following buckets: a 68" (1720 mm) heavy-duty material bucket with a heaped capacity of 14.4 cu.ft (0.41 m3), or 72" (1820 mm) heavy-duty material bucket with a heaped capacity of 15.4 cu.ft (0.44 m3).

Compatible Tractors
Tractor model New Holland T5000 Series
Front tires 11.2 R24
Rear tires 16.9 R30
Pump capacity, gpm (lpm) 16.1 (61.0)

Loader
Loader model New Holland 540TL NSL / MSL
Leveling configuration Non Self Leveling / Mechanical Self Leveling
Weight without bucket (NSL), lb (kg) 759 (345)
Weight without bucket (MSL), lb (kg) 870 (395)

68" Heavy-Duty Material Bucket
Width, in (mm) 68 (1720)
Struck capacity, cu.ft (m3) 11.6 (0.33)
Heaped capacity, cu.ft (m3) 14.4 (0.41)

72" Heavy-Duty Material Bucket
Width, in (mm) 72 (1820)
Struck capacity, cu.ft (m3) 12.3 (0.35)
Heaped capacity, cu.ft (m3) 15.4 (0.44)


Loader Dimensions
Maximum lift height at pivot pin, in (mm) 161.3 (4080)
Maximum lift height under level bucket, in (mm) 153.0 (3870)
Clearance with bucket dumped, in (mm) 120.2 (3040)
Digging depth, in (mm) 8.3 (210)
Reach at ground, bucket level, in (mm) 76.3 (1930)
Reach at maximum height, in (mm) 31.0 (785)
Maximum rollback angle at ground level, degrees 46
Maximum dump angle at maximum height, degrees 58

Operating Data
Lift capacity to maximum height at pivot pin, lb (kg) 3278 (1490)
Lift capacity to maximum height at 19.7" (0.5m) from pivot pin (NSL), lb (kg) 2760 (1254)
Lift capacity to maximum height at 19.7" (0.5m) from pivot pin (MSL), lb (kg) 3278 (1490)
Breakout force at pivot pin, lb (kg) 4463 (2029)
Breakout force at 19.7" (0.5m) from pivot pin (NSL), lb (kg) 3860 (1754)
Breakout force at 19.7" (0.5m) from pivot pin (MSL), lb (kg) 4463 (2029)
Bucket rollback force at ground level (NSL), lb (kg) 4510 (2050)
Bucket rollback force at ground level (MSL), lb (kg) 5563 (2529)
