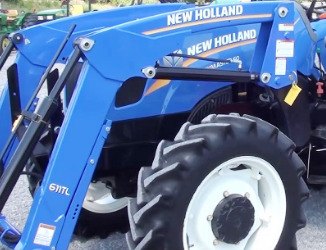

New Holland 611TL Front End Loader

The New Holland 611TL NSL/MSL loader is available for New Holland Workmaster 50, 60, 70 tractors. The New Holland 611TL loader has double acting hydraulic lifting and bucket cylinders. The MSL loader’s maximum lift height is 115" (2920 mm) at pin and clearance with bucket dumped is 84.2" (2140 mm). The lifting capacity is 2204 lbs (1000 kg) at maximum height (bucket pin), and breakout force is 3440 lbs (1563 kg) with bucket on ground.

Compatible buckets for the New Holland 611TL front-end loader: 72" (1820 mm) standard material bucket with a rated capacity of 0.47 m3 (16.5 cu.ft), 73" (1850 mm) high volume bucket with a rated capacity of 0.59 m3 (20.7 cu.ft), and 83" (2100 mm) high volume bucket with a rated capacity of 0.75 m3 (26.3 cu.ft).

Compatible Tractors
Tractor Models New Holland Workmaster 50, 60, 70
Front Tires 9.5x24
Rear Tires 14.9x28
Hydraulic System Flow, gpm (lpm) 12.0 (45.5)

Loader
Loader Model New Holland 611TL NSL / MSL
Leveling System Non Self Leveling / Mechanical Self Leveling
Weight, lb (kg) 1800 (820)

72" Standard Material Bucket
Width, in (mm) 72 (1820)
Struck Capacity, cu.ft (m3) 13.5 (0.38)
Heaped Capacity, cu.ft (m3) 16.5 (0.47)

73" High Volume Bucket
Width, in (mm) 73 (1850)
Struck Capacity, cu.ft (m3) 17.2 (0.49)
Heaped Capacity, cu.ft (m3) 20.7 (0.59)

83" High Volume Bucket
Width, in (mm) 83 (2100)
Struck Capacity, cu.ft (m3) 19.3 (0.55)
Heaped Capacity, cu.ft (m3) 26.3 (0.75)

Loader Dimensions
Maximum lift height to bucket pivot pin (NSL), in (mm) 112.2 (2850)
Maximum lift height to bucket pivot pin (MSL), in (mm) 115.0 (2920)
Clearance with bucket dumped (NSL), in (mm) 81.8 (2080)
Clearance with bucket dumped (MSL), in (mm) 84.2 (2140)
Maximum dump angle, loader fully raised (NSL), deg 43
Maximum dump angle, loader fully raised (MSL), deg 46
Maximum rollback angle, bucket at ground (NSL), deg 27
Maximum rollback angle, bucket at ground (MSL), deg 32
Digging depth, in (mm) 4.72 (120)

Operating Data
Lift Capacity to maximum height at pivot pin (NSL), lbs (kg) 1565 (711)
Lift Capacity to maximum height at pivot pin (MSL), lbs (kg) 2204 (1000)
Lift Capacity to 59" (1.5m) height at bucket pivot pin (NSL), lbs (kg) 3263 (1480)
Lift Capacity to 59" (1.5m) height at bucket pivot pin (MSL), lbs (kg) 2469 (1120)
Lift Capacity to 59" (1.5m) height at 31.5" (0.8m) forward of pivot pin (NSL), lbs (kg) 2359 (1070)
Lift Capacity to 59" (1.5m) height at 31.5" (0.8m) forward of pivot pin (MSL), lbs (kg) 2623 (1190)
Boom Breakout force at pivot pin (NSL), lbs (kg) 4276 (1943)
Boom Breakout force at pivot pin (MSL), lbs (kg) 3440 (1563)
Boom Breakout force at 31.5" (0.8m) forward of bucket pivot pin (NSL), lbs (kg) 2998 (1360)
Boom Breakout force at 31.5" (0.8m) forward of bucket pivot pin (MSL), lbs (kg) 3130 (1420)
