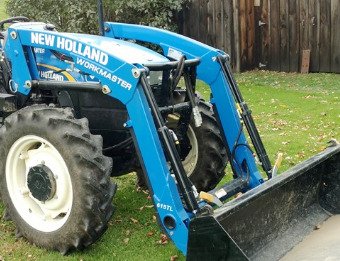

New Holland 615TL Front End Loader

The New Holland 615TL non self leveling front end loader is designed for New Holland Workmaster 45, 55 tractors. The front end loader has double acting hydraulic bucket and lift cylinders. The New Holland 615TL front end loader has a lift capacity (at bucket pin) of 2624 lbs (1190 kg) to a max height of 111" (2820 mm) and breakout force (bucket on ground) of 4299 lbs (1950 kg).

The clearance with a bucket dumped is 82" (2090 mm) at a maximum dump angle of 43 degrees. The New Holland 615TL loader is compatible with a 72" (1820 mm) standard material bucket with a rated capacity of 0.47 m3 (16.5 cu.ft).

Compatible Tractors
Tractor model New Holland Workmaster 45, 55
Front tires 9.5x24
Rear tires 14.9x28
Pump capacity, gpm (lpm) 11.6 (44.0)

Loader
Loader model New Holland 615TL NSL
Leveling configuration Non Self Leveling
Weight, lbs (kg) 1215 (550)

Standard Material Bucket
Width, in (mm) 72 (1820)
Struck capacity, cu.ft (m3) 13,77 (0,39)
Heaped capacity, cu.ft (m3) 16,5 (0,47)
Weight, lbs (kg) 476 (216)

Loader Dimensions
Maximum lift height, in (mm) 111 (2820)
Clearance at full height, bucket dumped, in (mm) 82 (2090)
Digging depth, in (mm) 4 (110)
Reach at maximum height, in (mm) 43 (1100)
Bucket dump angle, degrees 43
Bucket rollback angle, degrees 23

Operating Data
Lift capacity to full height at pivot pin, lbs (kg) 2624 (1190)
Lift capacity to 59" (1.5m) height at pivot pin, lbs (kg) 3461 (1570)
Breakout force at pivot pin, lbs (kg) 4299 (1950)
