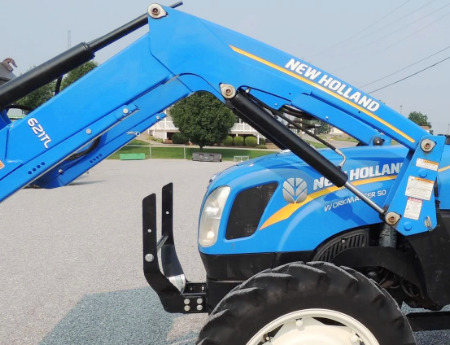

New Holland 621TL Front End Loader

The New Holland 621TL non self leveling or mechanical self leveling loader was designed for New Holland Workmaster 50, 60 tractors. The loader has double acting bucket and lifting hydraulic cylinders.

The MSL loader’s max lift height is 123" (3110 mm) at pin, and clearance with bucket dumped is 92.1" (2330 mm). The lift capacity to max height (31.5" ahead of pin) is 2733 lbs (1240 kg), and breakout force is 4034 lbs (1835 kg).

The New Holland 621TL front-end loader is equipped with the following buckets: a 72" (1820 mm) standard material bucket with a heaped capacity of 16.5 cu.ft (0.47 m3), or 84" (2130 mm) standard material bucket with a heaped capacity of 19.2 cu.ft (0.54 m3).

Compatible Tractors
Tractor model New Holland Workmaster 50, 60
Front tires 9.5x24
Rear tires 14.9x28
Pump capacity, gpm (lpm) 12.0 (45.4)

Loader
Loader model New Holland 621TL NSL / MSL
Leveling configuration Non Self Leveling / Mechanical Self Leveling
Weight, lb (kg) 1800 (820)

72" Standard Material Bucket
Width, in (mm) 72 (1820)
Struck capacity, cu.ft (m3) 13,8 (0,39)
Heaped capacity, cu.ft (m3) 16,5 (0,47)
Weight, lb (kg) 476 (216)

84" Standard Material Bucket
Width, in (mm) 84 (2130)
Struck capacity, cu.ft (m3) 15,9 (0,45)
Heaped capacity, cu.ft (m3) 19,2 (0,54)
Weight, lb (kg) 310 (141)


Loader Dimensions
Maximum lift height (NSL), in (mm) 119,8 (3030)
Maximum lift height (MSL), in (mm) 123 (3110)
Clearance at full height, bucket dumped (NSL), in (mm) 90,1 (2280)
Clearance at full height, bucket dumped (MSL), in (mm) 92,1 (2330)
Digging depth, in (mm) 5,9 (150)
Bucket dump angle (NSL), degrees 42
Bucket dump angle (MSL), degrees 46
Bucket rollback angle (NSL), degrees 27
Bucket rollback angle (MSL), degrees 45

Operating Data
Lift capacity to full height at 31.5" (0.8m) ahead of pivot pin (NSL), lb (kg) 1940 (880)
Lift capacity to full height at 31.5" (0.8m) ahead of pivot pin (MSL), lb (kg) 2733 (1240)
Lift capacity to 59 in (1.5 m) height at pivot pin (NSL), lb (kg) 3880 (1760)
Lift capacity to 59 in (1.5 m) height at pivot pin (MSL), lb (kg) 3020 (1370)
Lift capacity to 59 in (1.5 m) height at 31.5" (0.8m) ahead of pivot pin (NSL), lb (kg) 2778 (1260)
Lift capacity to 59 in (1.5 m) height at 31.5" (0.8m) ahead of pivot pin (MSL), lb (kg) 3130 (1420)
Breakout force at pivot pin (NSL), lb (kg) 4938 (2245)
Breakout force at pivot pin (MSL), lb (kg) 4034 (1835)
Breakout force at 31.5" (0.8m) ahead of pivot pin (NSL), lb (kg) 3086 (1460)
Breakout force at 31.5" (0.8m) ahead of pivot pin (MSL), lb (kg) 3527 (1600)
