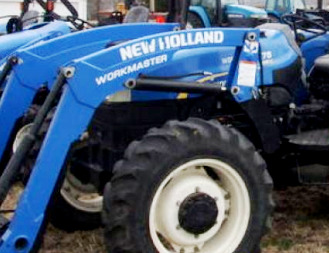

New Holland 625TL Front End Loader

The New Holland 625TL non self leveling loader fits New Holland Workmaster 65, 75 tractors. The loader has double acting bucket and lift hydraulic cylinders. The New Holland 625TL front-end loader has a max lift height of 126 in (3190 mm) at pin and bucket dump clearance of 99 in (2510 mm).

The lift capacity is 3250 lbs (1474 kg) to max height at pin, and boom breakout force is 4670 lbs (2118 kg). The New Holland 625TL loader is equipped with a 84" (2130 mm) standard material bucket with a heaped capacity of 0.54 m3 (19.2 cu.ft).

Compatible Tractors
Tractor model New Holland Workmaster 65, 75
Front tires 11.2x24
Rear tires 16.9x30
Pump capacity, gpm (lpm) 10.4 (39.5)
Rated pressure, psi (Bar) 2755 (180)

Loader
Loader model New Holland 625TL NSL
Leveling configuration Non Self Leveling
Weight, lb (kg) 1300 (590)

Standard Material Bucket
Width, in (mm) 84 (2130)
Struck capacity, cu.ft (m3) 15,9 (0,45)
Heaped capacity, cu.ft (m3) 19,2 (0,54)
Weight, lb (kg) 310 (141)

Loader Dimensions
Maximum lift height, in (mm) 126 (3190)
Clearance at full height, bucket dumped, in (mm) 99 (2510)
Digging depth, in (mm) 4 (100)
Reach at maximum height, in (mm) 31 (780)
Bucket dump angle, degrees 37
Bucket rollback angle, degrees 24

Operating Data
Lift capacity to full height at pivot pin, lb (kg) 3250 (1474)
Lift capacity to 59 in (1.5 m) height at pivot pin, lb (kg) 3450 (1606)
Breakout force at pivot pin, lb (kg) 4670 (2118)
