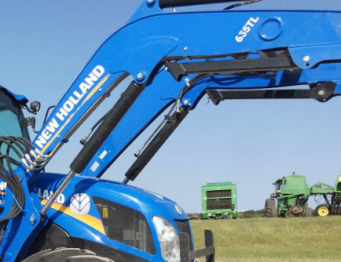

New Holland 635TL Front End Loader

The New Holland 635TL NSL/MSL loader is compatible with New Holland T4040, T4050 tractors. The front end loader has double acting boom and bucket hydraulic cylinders. The New Holland 635TL mechanical self leveling loader has a lift capacity (at 31.5" ahead of pivot pin) of 2486 lbs (1130 kg) to a maximum height of 129.6" (3280 mm) and breakout force (at 31.5" ahead of pivot pin) of 3080 lbs (1400 kg).

A full dump clearance with a 47-degree maximum dump angle is 96" (2430 mm). The New Holland 635TL loader is equipped with a 73" (1850 mm) standard material bucket with a rated capacity of 0.6 m3 (21.1 cu.ft), and 83" (2100 mm) standard material bucket with a rated capacity of 0.68 m3 (24 cu.ft).

Compatible Tractors
Tractor model New Holland T4040, T4050
Front tires 12.4x20R1
Rear tires 16.9x28R1
Pump capacity, gpm (lpm) 16.1 (61.0)

Loader
Loader model New Holland 635TL NSL / MSL
Leveling configuration Non Self Leveling / Mechanical Self Leveling
Weight (NSL), lbs (kg) 1741 (790)
Weight (MSL), lbs (kg) 1866 (850)

73" Standard Material Bucket
Width, in (mm) 73 (1850)
Struck capacity, cu.ft (m3) 17,0 (0,48)
Heaped capacity, cu.ft (m3) 21,1 (0,60)
Weight, lbs (kg) 401 (182)

83" Standard Material Bucket
Width, in (mm) 83 (2100)
Struck capacity, cu.ft (m3) 19,44 (0,55)
Heaped capacity, cu.ft (m3) 24,03 (0,68)
Weight, lbs (kg) 505 (230)

Loader Dimensions
Maximum lift height, in (mm) 129,6 (3280)
Clearance at full height, bucket dumped, in (mm) 96 (2430)
Digging depth, in (mm) 6,3 (160)
Reach at maximum height, in (mm) 35,1 (890)
Reach at ground, bucket level, in (mm) 88,3 (2235)
Bucket dump angle, degrees 47
Bucket rollback angle, degrees 45

Operating Data
Lift capacity to full height at 31.5" (0.8m) ahead of pivot (NSL), lbs (kg) 2046 (930)
Lift capacity to full height at 31.5" (0.8m) ahead of pivot (MSL), lbs (kg) 2486 (1130)
Breakout force at 31.5" (0.8m) ahead of pivot (NSL), lbs (kg) 3564 (1620)
Breakout force at 31.5" (0.8m) ahead of pivot (MSL), lbs (kg) 3080 (1400)
