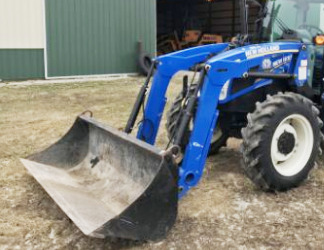

New Holland 640TL Front End Loader

The New Holland 640TL non self leveling or mechanical self leveling loader is available for New Holland T5000 Series tractors. The New Holland 640TL loader has double acting hydraulic lifting and bucket cylinders. The NSL loader’s maximum lift height is 136.8" (3461 mm) at pin and clearance with bucket dumped is 104.4" (2642 mm).

The lifting capacity is 2354 lbs (1070 kg) at maximum height (31.5" ahead of bucket pin), and breakout force is 3982 lbs (1810 kg) at 31.5" ahead of bucket pin. Compatible buckets for the New Holland 640TL front-end loader: 84" (2120 mm) standard material bucket with a rated capacity of 0.54 m3 (19.2 cu.ft), and 83" (2100 mm) high volume bucket with a rated capacity of 0.68 m3 (24 cu.ft).

Compatible Tractors
Tractor model New Holland T5000 Series
Front tires 11.2 R24
Rear tires 16.9 R30
Pump capacity, gpm (lpm) 16.1 (61.0)

Loader
Loader model New Holland 640TL NSL / MSL
Leveling configuration Non Self Leveling / Mechanical Self Leveling
Weight (NSL), lb (kg) 1746 (795)
Weight (MSL), lb (kg) 1976 (900)

Standard Material Bucket
Width, in (mm) 84 (2120)
Struck capacity, cu.ft (m3) 15,9 (0,45)
Heaped capacity, cu.ft (m3) 19,2 (0,54)
Weight, lb (kg) 310 (141)

High Volume Bucket
Width, in (mm) 83 (2100)
Struck capacity, cu.ft (m3) 19,44 (0,55)
Heaped capacity, cu.ft (m3) 24,03 (0,68)
Weight, lb (kg) 505 (230)

Loader Dimensions
Maximum lift height, in (mm) 136,8 (3461)
Clearance at full height, bucket dumped, in (mm) 104,4 (2642)
Digging depth, in (mm) 6,3 (159)
Reach at maximum height, in (mm) 36,6 (926)
Reach at ground, bucket level, in (mm) 89 (2252)
Bucket dump angle, degrees 49
Bucket rollback angle, degrees 44

Operating Data
Lift capacity to full height at 31.5" (0.8m) ahead of pivot (NSL), lb (kg) 2354 (1070)
Lift capacity to full height at 31.5" (0.8m) ahead of pivot (MSL), lb (kg) 2882 (1310)
Breakout force at 31.5" (0.8m) ahead of pivot (NSL), lb (kg) 3982 (1810)
Breakout force at 31.5" (0.8m) ahead of pivot (MSL), lb (kg) 3498 (1590)
