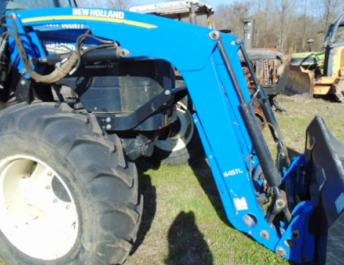

New Holland 645TL Front End Loader

The New Holland 645TL NSL/MSL front end loader is designed for New Holland TS6.110, TS6.120 tractors. The loader has double acting hydraulic bucket and lift cylinders. The New Holland 645TL NSL front end loader has a lift capacity (31.5" ahead of bucket pin) of 2398 lbs (1090 kg) to a max height of 144" (3644 mm) and breakout force (31.5" ahead of bucket pin) of 3894 lbs (1770 kg).

The clearance with a bucket dumped is 111.6" (2824 mm) at max dump angle of 49 deg. The New Holland 645TL loader is compatible with the following standard material buckets: a 72" (1820 mm) bucket with a rated capacity of 0.47 m3 (16.5 cu.ft), and 84" (2120 mm) bucket with a rated capacity of 0.54 m3 (19.2 cu.ft).

Compatible Tractors
Tractor model New Holland TS6.110, TS6.120
Front tires 14.9x24-R1
Rear tires 18.4x34-R1
Pump capacity, gpm (lpm) 22.0 (83.3)

Loader
Loader model New Holland 645TL NSL / MSL
Leveling configuration Non Self Leveling / Mechanical Self Leveling
Weight (NSL), lb (kg) 1906 (866)
Weight (MSL), lb (kg) 2036 (925)

72" Standard Material Bucket
Width, in (mm) 72 (1820)
Struck capacity, cu.ft (m3) 13,8 (0,39)
Heaped capacity, cu.ft (m3) 16,5 (0,47)
Weight, lb (kg) 476 (216)

84" Standard Material Bucket
Width, in (mm) 84 (2130)
Struck capacity, cu.ft (m3) 15,9 (0,45)
Heaped capacity, cu.ft (m3) 19,2 (0,54)
Weight, lb (kg) 310 (141)

Loader Dimensions
Maximum lift height, in (mm) 144 (3644)
Clearance at full height, bucket dumped, in (mm) 111,6 (2824)
Digging depth, in (mm) 6,3 (160)
Reach at maximum height, in (mm) 35,5 (899)
Reach at ground, bucket level, in (mm) 89,4 (2262)
Bucket dump angle, degrees 49
Bucket rollback angle, degrees 43

Operating Data
Lift capacity to full height at 31.5" (0.8m) ahead of pivot (NSL), lb (kg) 2398 (1090)
Lift capacity to full height at 31.5" (0.8m) ahead of pivot (MSL), lb (kg) 2970 (1350)
Breakout force at 31.5" (0.8m) ahead of pivot (NSL), lb (kg) 3894 (1770)
Breakout force at 31.5" (0.8m) ahead of pivot (MSL), lb (kg) 3476 (1580)
