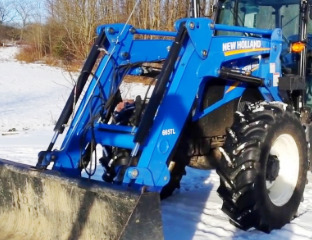

New Holland 665TL Front End Loader

The New Holland 665TL non self leveling or mechanical self leveling loader fits New Holland T4.105, T4.115 tractors. The loader has double acting hydraulic boom and bucket cylinders.

The loader’s max lift height (MSL) is 135" (3416 mm) at pin, and clearance with bucket dumped (MSL) is 102.2" (2586 mm). The lift capacity (MSL) is 3428 lbs (1558 kg) to maximum lift height at 0.8m forward of pin, and boom breakout force (MSL) is 5661 lbs (2574 kg) at 0.8m forward of pin.

The New Holland 665TL loader can be equipped with a 83" (2100 mm) heavy duty material bucket with a rated capacity of 1.07 cu.yd (0.81 m3), or 79" (2000) high volume bucket with a rated capacity of 1.53 cu.yd (1.16 m3).

Compatible Tractors
Tractor Models New Holland T4.105, T4.115
Front Tires 14.9x24
Rear Tires 18.4x34
Hydraulic System Flow, gpm (lpm) 16.9 (64.0)

Loader
Loader Model NH 665TL
Leveling System Non Self Leveling/Mechanical Self Leveling
Weight, lbs (kg) 1200 (545)

83" Heavy Duty Material Bucket
Width, in (mm) 83 (2100)
Struck Capacity, cu. yd (m3) 0.90 (0.76)
Heaped Capacity, cu. yd (m3) 1.07 (0.81)

79" High Volume Bucket
Width, in (mm) 79 (2000)
Struck Capacity, cu. yd (m3) 1.27 (0.97)
Heaped Capacity, cu. yd (m3) 1.53 (1.16)


Loader Dimensions
Maximum Lift Height to Pivot Pin (NSL), in (mm) 134 (3390)
Maximum Lift Height to Pivot Pin (MSL), in (mm) 135 (3416)
Clearance with Bucket Dumped (NSL), in (mm) 101.4 (2565)
Clearance with Bucket Dumped (MSL), in (mm) 102.2 (2586)
Reach at Maximum Lift Height, in (mm) 43 (1088)
Digging Depth, in (mm) 7 (177)
Maximum Dump Angle, degrees 60
Reach with Bucket on Ground (NSL), in (mm) 91 (2302)
Reach with Bucket on Ground (MSL), in (mm) 93 (2353)
Maximum Rollback Angle (NSL), degrees 44
Maximum Rollback Angle (MSL), degrees 40

Operating Data
Lift Capacity to Max. Height at 800 mm from Pin (NSL), lbs (kg) 2632 (1196)
Lift Capacity to Max. Height at 800 mm from Pin (MSL), lbs (kg) 3428 (1558)
Lift Capacity to 1500 mm Height at 800 mm Forward of Pin (NSL), lbs (kg) 3638 (1654)
Lift Capacity to 1500 mm Height at 800 mm Forward of Pin (MSL), lbs (kg) 5549 (2522)
Breakout Force at 800 mm from Pin (NSL), lbs (kg) 4455 (2025)
Breakout Force at 800 mm from Pin (MSL), lbs (kg) 5661 (2574)
