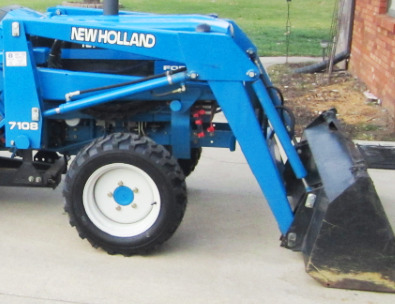

New Holland 7108 Front End Loader

The New Holland 7108 front end loader is fitted to New Holland 1520, 1720, and 1920 tractors. The front end loader has double acting boom and bucket hydraulic cylinders.

The loader’s max lift height is 94 in (2380 mm) at pin and bucket dump clearance is 76 in (1920 mm). The lifting capacity is 1120 lbs (500 kg) at maximum height (bucket pin), and bucket's breakout force is 1950 lbs (890 kg). The estimated cycle times are 4.2 seconds raising to maximum height, and 4 seconds full bucket dumping.

Compatible buckets for the New Holland 7108 loader: a 4-ft (1220 mm) standard material bucket with a heaped capacity of 7.5 cu.ft (0.21 m3), 5-ft (1520 mm) standard material bucket with a heaped capacity of 12 cu.ft (0.34 m3), and 6-ft (1820 mm) standard material bucket with a heaped capacity of 20.3 cu.ft (0.58 m3).

Compatible Tractors
Tractor Models New Holland 1520, 1720, 1920
Front Tires 6.0x14
Rear Tires 9.5x24
Hydraulic System Flow, gpm (lpm) 6.0 (22.8)
Hydraulic Pressure, bar (psi) 138 (2000)

Loader
Loader Model New Holland 7108
Attachment Type Pin-On
Attachment Control Hydraulic
Boom Cylinder Two, Double action
Bucket Cylinder Two, Double action

48" Standard Material Bucket
Width, in (mm) 48 (1220)
Inside Height, in (mm) 18 (455)
Depth, in (mm) 19 (480)
Capacity (Struck), cu.ft (m3) 6.0 (0.17)
Capacity (Heaped), cu.ft (m3) 7.5 (0.21)
Weight, lbs (kg) 230 (105)

60" Standard Material Bucket
Width, in (mm) 60 (1520)
Inside Height, in (mm) 25.5 (645)
Depth, in (mm) 20.2 (590)
Capacity (Struck), cu.ft (m3) 10.1 (0.29)
Capacity (Heaped), cu.ft (m3) 12.0 (0.34)
Weight, lbs (kg) 360 (163)


72" Standard Material Bucket
Width, in (mm) 72 (1820)
Inside Height, in (mm) 26.8 (678)
Depth, in (mm) 25.5 (645)
Capacity (Struck), cu.ft (m3) 16.9 (0.48)
Capacity (Heaped), cu.ft (m3) 20.3 (0.58)
Weight, lbs (kg) 365 (165)

Loader Dimensions
Maximum Lift Height, Measured at Pivot Pin, in (mm) 94 (2380)
Clearance at Full Height, Bucket Dumped, in (mm) 76 (1920)
Reach at Maximum Height, in (mm) 23 (580)
Maximum Dump Angle, degrees 43
Reach at Ground, Bucket Level, in (mm) 65 (1645)
Maximum Rollback Angle, degrees 18
Digging Depth, in (mm) 4.5 (114)
Overall Height in Carrying Position, in (mm) 54 (1365)

Operating Data
Lift Capacity to Maximum Height, At Pivot Pin, lbs (kg) 1120 (500)
Lift Capacity to Maximum Height, 19.7" (0.5m) Forward of Pivot Pin, lbs (kg) 860 (390)
Lift Capacity to 59" (1.5m) Height, At Pivot Pin, lbs (kg) 1350 (615)
Lift Capacity to 59" (1.5m) Height, 19.7" (0.5m) Forward of Pivot Pin, lbs (kg) 1055 (480)
Breakout Force, At Pivot Pin, lbs (kg) 1950 (890)
Breakout Force, 19.7" (0.5m) Forward of Pivot Pin, lbs (kg) 1500 (680)
Rollback Force at Maximum Height, 19.7" (0.5m) Forward of Pivot Pin, lbs (kg) 2000 (900)

Cycle Times
Raising Time (Ground Level to Max. Height), seconds 4,2
Lowering Time (Max. Height to Ground Level), seconds 2,1
Bucket Dumping Time (Max. Rollback to Max. Dump), seconds 4,0
Bucket Rollback Time (Max. Dump to Max. Rollback), seconds 2,1
