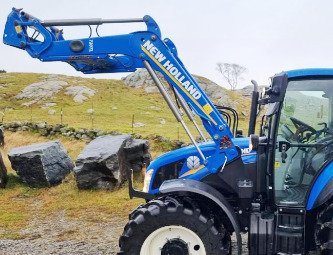

New Holland 720TL Front End Loader

The New Holland 720TL non self leveling or mechanical self leveling loader fits New Holland TD5.65, TD5.75 tractors. The loader has double acting bucket and lift hydraulic cylinders. The New Holland 720TL front-end loader has a max lift height of 136.4" (3450 mm) at pin and bucket dump clearance of 94.1" (2380 mm).

The lift capacity is 3380 lbs (1540 kg) to max height at pin, and boom breakout force is 4400 lbs (2000 kg). The New Holland 720TL loader is equipped with the following standard material buckets: a 68" (1720 mm) bucket with a rated capacity of 0.41 m3 (14.4 cu.ft), and 72" (1820 mm) bucket with a rated capacity of 0.44 m3 (15.4 cu.ft).

Compatible Tractors
Tractor model New Holland TD5.65, TD5.75
Front tires 405/70R20
Rear tires 540/65R30
Pump capacity, gpm (lpm) 10.5 (40.0)

Loader
Loader model New Holland 720TL NSL / MSL
Leveling configuration Non Self Leveling / Mechanical Self Leveling
Weight without bucket (NSL), lb (kg) 785 (356)
Weight without bucket (MSL), lb (kg) 890 (406)

68" Standard Material Bucket
Width, in (mm) 68 (1720)
Struck capacity, cu.ft (m3) 11.6 (0.33)
Heaped capacity, cu.ft (m3) 14.4 (0.41)

72" Standard Material Bucket
Width, in (mm) 72 (1820)
Struck capacity, cu.ft (m3) 12.25 (0.35)
Heaped capacity, cu.ft (m3) 15.4 (0.44)

Loader Dimensions
Maximum lift height at pivot pin, in (mm) 136.4 (3450)
Maximum lift height under level bucket, in (mm) 128.1 (3240)
Clearance with bucket dumped, in (mm) 94.1 (2380)
Digging depth, in (mm) 8.3 (210)
Reach at ground, bucket level, in (mm) 65.6 (1660)
Reach at maximum height, in (mm) 26.5 (670)
Maximum rollback angle at ground level, degrees 40
Maximum dump angle at full height, degrees 61

Operating Data
Lift capacity to maximum height at pivot pin, lb (kg) 3380 (1540)
Lift capacity to maximum height at 31.5" (0.8m) from pivot pin (NSL), lb (kg) 2827 (1285)
Lift capacity to maximum height at 31.5" (0.8m) from pivot pin (MSL), lb (kg) 3380 (1540)
Breakout force at pivot pin, lb (kg) 4400 (2000)
Breakout force at 31.5" (0.8m) from pivot pin (NSL), lb (kg) 3700 (1683)
Breakout force at 31.5" (0.8m) from pivot pin (MSL), lb (kg) 4400 (2000)
Bucket rollback force at ground level (NSL), lb (kg) 3705 (1685)
Bucket rollback force at ground level (MSL), lb (kg) 4150 (1886)
