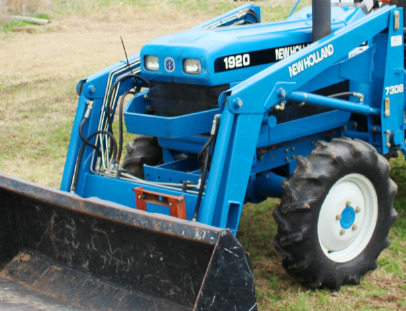

New Holland 7308 Front End Loader
The
New Holland 7308 non self leveling loader fits New Holland 1520, 1530, 1620, New
Holland 1630, 1720, and 1725 tractors. The loader has double acting bucket and
lifting hydraulic cylinders.
The New Holland 7308 loader (for NH 1530, 1630, 1725) has a lift
capacity (at bucket pin) of 875 lbs (398 kg) to max height of 100.8"
(2550 mm), and bucket's breakout force of 2344 lbs (1066 kg). The bucket
dump clearance with a 39-degree maximum dump angle is 83.3" (2108 mm).
The New Holland 7308 loader is equipped with the following standard
material buckets: a 48" (1220 mm) bucket with a rated capacity of 0.32
cu.yd (0.24 m3), 54" (1350 mm) bucket with a rated capacity of 0.35
cu.yd (0.27 m3), 60" (1520 mm) bucket with a rated capacity of 0.4 cu.yd
(0.3 m3), and 68" (1720 mm) bucket with a rated capacity of 0.45 cu.yd
(0.34 m3).
| Tractor Models |
New Holland 1520, 1530, 1620, 1630, 1720, 1725 |
| Front Tires |
25x8.50-15 |
| Rear Tires |
13,6-16 |
| Hydraulic System Flow, gpm (lpm) |
7.1 (27.0) |
| Loader Model |
NH 7308 Quick-Attach |
| Leveling System |
Non-Self Leveling |
| Weight (w/o Bucket), lbs (kg) |
516 (235) |
| 48" Standard Material Bucket |
| Width, in (mm) |
48 (1220) |
| Struck Capacity, yd3 (m3) |
0.26 (0.20) |
| Heaped Capacity, yd3 (m3) |
0.32 (0.24) |
| 54" Standard Material Bucket |
| Width, in (mm) |
54 (1350) |
| Struck Capacity, yd3 (m3) |
0.29 (0.22) |
| Heaped Capacity, yd3 (m3) |
0.35 (0.27) |
| 60" Standard Material Bucket |
| Width, in (mm) |
60 (1520) |
| Struck Capacity, yd3 (m3) |
0.32 (0.25) |
| Heaped Capacity, yd3 (m3) |
0.40 (0.30) |
| 68" Standard Material Bucket |
| Width, in (mm) |
68 (1720) |
| Struck Capacity, yd3 (m3) |
0.36 (0.28) |
| Heaped Capacity, yd3 (m3) |
0.45 (0.34) |
| Maximum Lift Height to Pivot Pin (NH 1520, 1620, 1720), in (mm) |
100.5 (2543) |
| Maximum Lift Height to Pivot Pin (NH 1530, 1630, 1725), in (mm) |
100.8 (2550) |
| Clearance with Bucket Dumped (NH 1520, 1620, 1720), in (mm) |
84 (2125) |
| Clearance with Bucket Dumped (NH 1530, 1630, 1725), in (mm) |
83.3 (2108) |
| Reach at Maximum Lift Height (NH 1520, 1620, 1720), in (mm) |
12.8 (324) |
| Reach at Maximum Lift Height (NH 1530, 1630, 1725), in (mm) |
23.5 (595) |
| Digging Depth, in (mm) |
4 (101) |
| Maximum Dump Angle (NH 1520, 1620, 1720), degrees |
38 |
| Maximum Dump Angle (NH 1530, 1630, 1725), degrees |
39 |
| Maximum Rollback Angle, degrees |
20 |
| Lift Capacity to Max. Height at Pivot Point, lbs (kg) |
875 (398) |
| Max. Breakout Force at Bucket Pivot Point (NH 1520, 1620, 1720), lbs (kg) |
1602 (729) |
| Max. Breakout Force at Bucket Pivot Point (NH 1530, 1630, 1725), lbs (kg) |
2344 (1066) |
