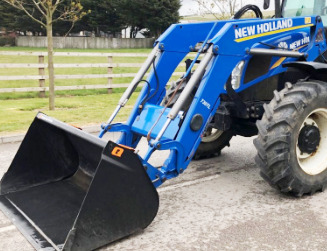

New Holland 730TL Front End Loader

The New Holland 730TL NSL/MSL loader is used for New Holland TD5.85, TD5.95, TD5.105, TD5.115 tractors. The loader hydraulic system includes double-acting bucket and lift hydraulic cylinders. The New Holland 730TL front end loader has a lifting capacity (at pivot pin) of 3380 lbs (1540 kg) to maximum height of 147.8" (3740 mm), and bucket's breakout force of 4540 lbs (2060 kg).

The bucket dump clearance is 106.3" (2690 mm) at maximum dump angle of 59 degrees. The New Holland 730TL loader is compatible with a 73" (1850 mm) standard material bucket with a rated capacity of 0.59 m3 (20.7 cu.ft), and 83" (2100 mm) standard material bucket with a rated capacity of 0.75 m3 (26.3 cu.ft).

Compatible Tractors
Tractor model New Holland TD5.85, TD5.95, TD5.105, TD5.115
Front tires 340/85R24
Rear tires 420/85R34
Pump capacity, gpm (lpm) 10.5 (40.0)

Loader
Loader model New Holland 730TL NSL / MSL
Leveling configuration Non Self Leveling / Mechanical Self Leveling
Weight without bucket (NSL), lb (kg) 924 (420)
Weight without bucket (MSL), lb (kg) 1023 (465)

73" Standard Material Bucket
Width, in (mm) 73 (1850)
Struck Capacity, cu.ft (m3) 17.2 (0.49)
Heaped Capacity, cu.ft (m3) 20.7 (0.59)

83" Standard Material Bucket
Width, in (mm) 83 (2100)
Struck Capacity, cu.ft (m3) 19.3 (0.55)
Heaped Capacity, cu.ft (m3) 26.3 (0.75)

Loader Dimensions
Maximum lift height at pivot pin, in (mm) 147.8 (3740)
Maximum lift height under level bucket, in (mm) 139.5 (3530)
Clearance with bucket dumped, in (mm) 106.3 (2690)
Digging depth, in (mm) 8.3 (210)
Reach at ground, bucket level, in (mm) 70.4 (1780)
Reach at maximum height, in (mm) 27.7 (700)
Maximum rollback angle at ground level, degrees 46
Maximum dump angle at full height, degrees 59

Operating Data
Lift capacity to maximum height at pivot pin, lb (kg) 3380 (1540)
Lift capacity to maximum height at 31.5" (0.8m) from pivot pin (NSL), lb (kg) 2827 (1285)
Lift capacity to maximum height at 31.5" (0.8m) from pivot pin (MSL), lb (kg) 3380 (1540)
Breakout force at pivot pin, lb (kg) 4540 (2060)
Breakout force at 31.5" (0.8m) from pivot pin (NSL), lb (kg) 3858 (1754)
Breakout force at 31.5" (0.8m) from pivot pin (MSL), lb (kg) 4540 (2060)
Bucket rollback force at ground level (NSL), lb (kg) 3770 (1713)
Bucket rollback force at ground level (MSL), lb (kg) 5720 (2600)
