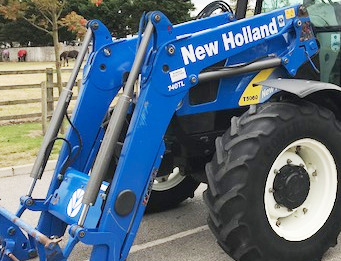

New Holland 740TL Front End Loader

The New Holland 740TL NSL/MSL loader is compatible with New Holland T6010, T6020, T6040, T6060 tractors. The front end loader has double acting boom and bucket hydraulic cylinders. The New Holland 740TL loader has a lift capacity (at pivot pin) of 4173 lbs (1897 kg) to a maximum height of 147.7 in (3740 mm) and breakout force of 5585 lbs (2539 kg) with bucket on ground.

A full dump clearance with a 59-degree maximum dump angle is 106.3 in (2690 mm). The New Holland 740TL loader is equipped with a 84" (2120 mm) standard material bucket with a rated capacity of 0.54 m3 (19.2 cu.ft), or 79" (2000 mm) high volume bucket with a heaped capacity of 1.17 m3 (41.3 cu.ft).

Compatible Tractors
Tractor model New Holland T6010, T6020, T6040, T6060
Front tires 14.9R24
Rear tires 18.4R34
Pump capacity, gpm (lpm) 26.5 (100.3)

Loader
Loader model New Holland 740TL NSL / MSL
Leveling configuration Non Self Leveling / Mechanical Self Leveling
Weight without bucket (NSL), lb (kg) 935 (425)
Weight without bucket (MSL), lb (kg) 1045 (475)

Standard Material Bucket
Width, in (mm) 84 (2120)
Struck capacity, cu.ft (m3) 15,9 (0,45)
Heaped capacity, cu.ft (m3) 19,2 (0,54)
Weight, lb (kg) 310 (141)

High Volume Bucket
Width, in (mm) 79 (2000)
Struck capacity, cu.ft (m3) 34,3 (0,97)
Heaped capacity, cu.ft (m3) 41,3 (1,17)
Weight, lb (kg) 602 (274)

Loader Dimensions
Maximum lift height at pivot pin, in (mm) 147.7 (3740)
Maximum lift height under level bucket, in (mm) 139.4 (3530)
Clearance with bucket dumped, in (mm) 106.3 (2690)
Digging depth, in (mm) 8.3 (210)
Reach at ground, bucket level, in (mm) 70.5 (1780)
Reach at maximum height, in (mm) 27.7 (700)
Maximum rollback angle at ground level, degrees 46
Maximum dump angle at full height, degrees 59

Operating Data
Lift capacity to maximum height at pivot pin, lb (kg) 4173 (1897)
Lift capacity to maximum height at 31.5" (0.8m) from pivot pin (NSL), lb (kg) 3500 (1590)
Lift capacity to maximum height at 31.5" (0.8m) from pivot pin (MSL), lb (kg) 4173 (1897)
Breakout force at pivot pin, lb (kg) 5585 (2539)
Breakout force at 31.5" (0.8m) from pivot pin (NSL), lb (kg) 4778 (2172)
Breakout force at 31.5" (0.8m) from pivot pin (MSL), lb (kg) 5585 (2539)
Bucket rollback force at ground level (NSL), lb (kg) 4778 (2172)
Bucket rollback force at ground level (MSL), lb (kg) 5720 (2600)
