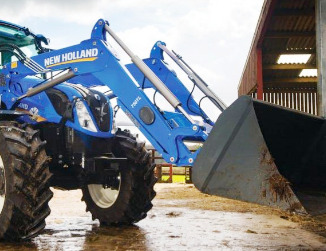

New Holland 750TL Front End Loader

The New Holland 750TL non self leveling or mechanical self leveling loader is available for New Holland T6.120, T6.140, T6.150, T6.160 tractors. The New Holland 750TL loader has double acting hydraulic lifting and bucket cylinders. The loader’s maximum lift height is 160.9" (4070 mm) at pin and clearance with bucket dumped is 119" (3010 mm).

The lifting capacity is 3880 lbs (1764 kg) at maximum height (bucket pin), and breakout force is 5075 lbs (2306 kg) with bucket on ground. Compatible heavy duty material buckets for the New Holland 750TL front-end loader: 73" (1850 mm) bucket with a rated capacity of 0.59 m3 (20.7 cu.ft), and 83" (2100 mm) bucket with a rated capacity of 0.75 m3 (26.3 cu.ft).

Compatible Tractors
Tractor model New Holland T6.120, T6.140, T6.150, T6.160
Front tires 380/85-R28
Rear tires 460/85-R38
Pump capacity, gpm (lpm) 18.5 (70.0)

Loader
Loader model New Holland 750TL NSL / MSL
Leveling configuration Non Self Leveling / Mechanical Self Leveling
Weight without bucket (NSL), lb (kg) 1035 (470)
Weight without bucket (MSL), lb (kg) 1188 (540)

73" Heavy Duty Material Bucket
Width, in (mm) 73 (1850)
Struck Capacity, cu.ft (m3) 17.2 (0.49)
Heaped Capacity, cu.ft (m3) 20.7 (0.59)

83" Heavy Duty Material Bucket
Width, in (mm) 83 (2100)
Struck Capacity, cu.ft (m3) 19.3 (0.55)
Heaped Capacity, cu.ft (m3) 26.3 (0.75)

Loader Dimensions
Maximum lift height at pivot pin, in (mm) 160.9 (4070)
Maximum lift height under level bucket, in (mm) 152.6 (3860)
Clearance with bucket dumped, in (mm) 119.0 (3010)
Digging depth, in (mm) 8.3 (210)
Reach at ground, bucket level, in (mm) 76.3 (1930)
Reach at maximum height, in (mm) 31.0 (785)
Maximum rollback angle at ground level, degrees 46
Maximum dump angle at full height, degrees 59

Operating Data
Lift capacity to maximum height at pivot pin, lb (kg) 3880 (1764)
Lift capacity to maximum height at 31.5" (0.8m) from pivot pin (NSL), lb (kg) 3300 (1500)
Lift capacity to maximum height at 31.5" (0.8m) from pivot pin (MSL), lb (kg) 3880 (1764)
Breakout force at pivot pin, lb (kg) 5075 (2306)
Breakout force at 31.5" (0.8m) from pivot pin (NSL), lb (kg) 4373 (1988)
Breakout force at 31.5" (0.8m) from pivot pin (MSL), lb (kg) 5075 (2306)
Bucket rollback force at ground level (NSL), lb (kg) 5250 (2386)
Bucket rollback force at ground level (MSL), lb (kg) 5720 (2600)
