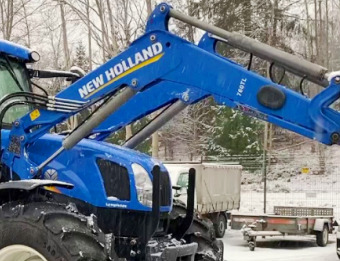

New Holland 760TL Front End Loader

The New Holland 760TL NSL/MSL front end loader is designed for New Holland T6030, T6050, T6070 tractors. The front end loader has double acting hydraulic bucket and lift cylinders. The New Holland 760TL front end loader has a lift capacity (at bucket pin) of 4463 lbs (2029 kg) to a max height of 161" (4071 mm) and breakout force (bucket on ground) of 5810 lbs (2640 kg). The clearance with a bucket dumped is 118.9" (3011 mm) at a maximum dump angle of 59 degrees.

The New Holland 760TL loader is compatible with the following buckets: a 83" (2100 mm) standard material bucket with a rated capacity of 0.55 m3 (19.3 cu.ft), or 79" (2000 mm) high volume bucket with a rated capacity of 1.17 m3 (41.3 cu.ft).

Compatible Tractors
Tractor model New Holland T6030, T6050, T6070
Front tires 14.9R24
Rear tires 18.4R34
Pump capacity, gpm (lpm) 26.5 (100.3)

Loader
Loader model New Holland 760TL NSL / MSL
Leveling configuration Non Self Leveling / Mechanical Self Leveling
Weight without bucket (NSL), lb (kg) 1056 (480)
Weight without bucket (MSL), lb (kg) 1210 (550)

Standard Material Bucket
Width, in (mm) 83 (2100)
Struck Capacity, cu.ft (m3) 19.3 (0.55)
Heaped Capacity, cu.ft (m3) 26.3 (0.75)

High Volume Bucket
Width, in (mm) 79 (2000)
Struck capacity, cu.ft (m3) 34,3 (0,97)
Heaped capacity, cu.ft (m3) 41,3 (1,17)
Weight, lb (kg) 602 (274)

Loader Dimensions
Maximum lift height at pivot pin, in (mm) 161.0 (4071)
Maximum lift height under level bucket, in (mm) 152.6 (3862)
Clearance with bucket dumped, in (mm) 118.9 (3011)
Digging depth, in (mm) 8.3 (210)
Reach at ground, bucket level, in (mm) 76.3 (1931)
Reach at maximum height, in (mm) 31.0 (785)
Maximum rollback angle at ground level, degrees 46
Maximum dump angle at full height, degrees 59

Operating Data
Lift capacity to maximum height at pivot pin, lb (kg) 4463 (2029)
Lift capacity to maximum height at 31.5" (0.8m) from pivot pin (NSL), lb (kg) 3790 (1723)
Lift capacity to maximum height at 31.5" (0.8m) from pivot pin (MSL), lb (kg) 4463 (2029)
Breakout force at pivot pin, lb (kg) 5810 (2640)
Breakout force at 31.5" (0.8m) from pivot pin (NSL), lb (kg) 5025 (2284)
Breakout force at 31.5" (0.8m) from pivot pin (MSL), lb (kg) 5810 (2640)
Bucket rollback force at ground level (NSL), lb (kg) 5250 (2386)
Bucket rollback force at ground level (MSL), lb (kg) 6280 (2855)
